ZC Series split solar street lights separate the solar panel from the LED lamp head to give project teams greater flexibility when planning solar collection, lamp-head placement and pole installation. The series covers 30W to 120W LED options and is designed for outdoor road-lighting projects using a 55–60mm pole diameter.

ZC Series Split Solar Street Light Overview

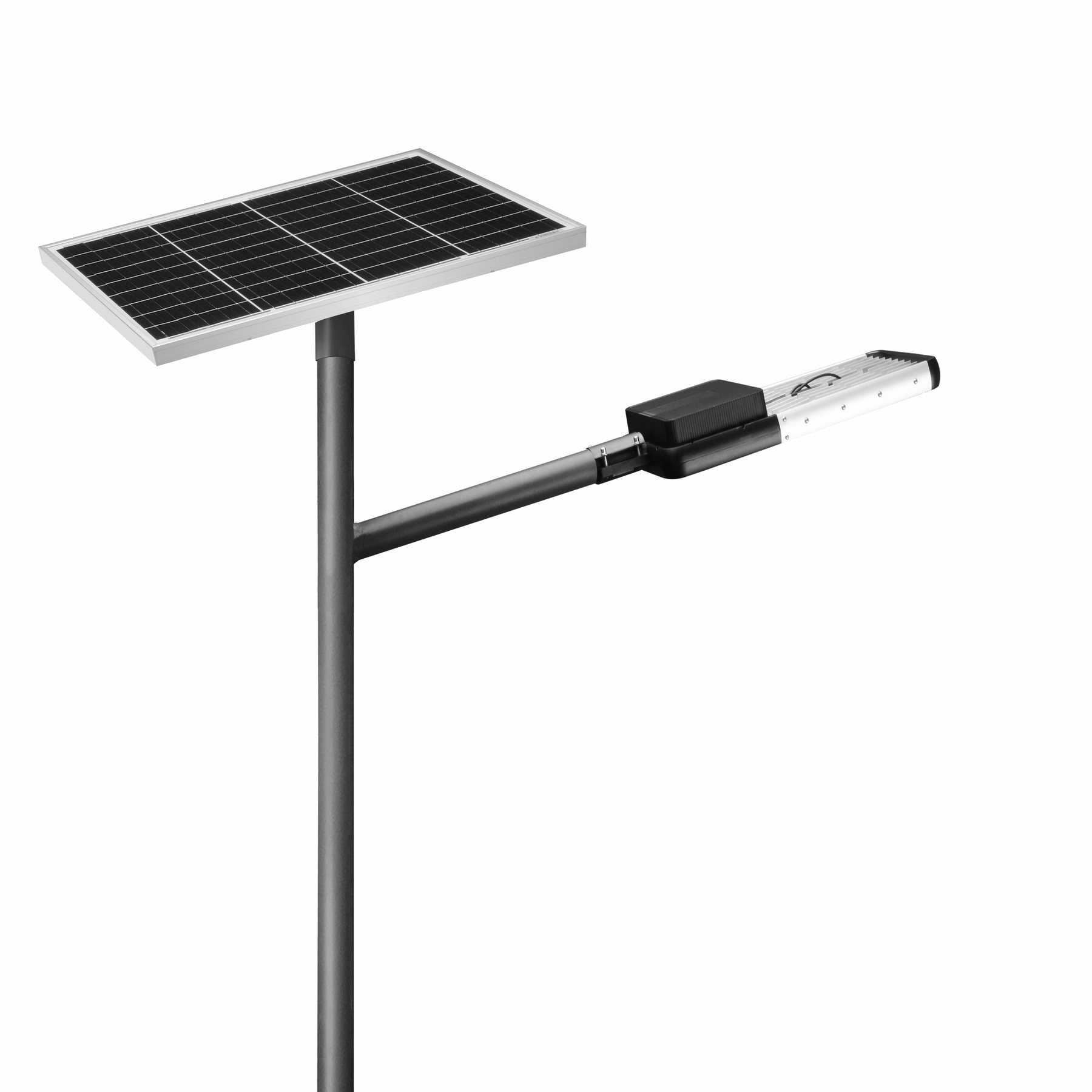

The ZC Series uses a split solar street light structure in which the panel and lamp head are arranged separately on the mounting assembly. This configuration provides a clear product architecture for projects that need the solar panel and lighting head positioned independently. The catalogue range includes 30W/40W, 50W/60W, 80W and 100W/120W configurations, allowing model selection by road-lighting requirement and project scale.

Specifications

Construction and Solar Configuration

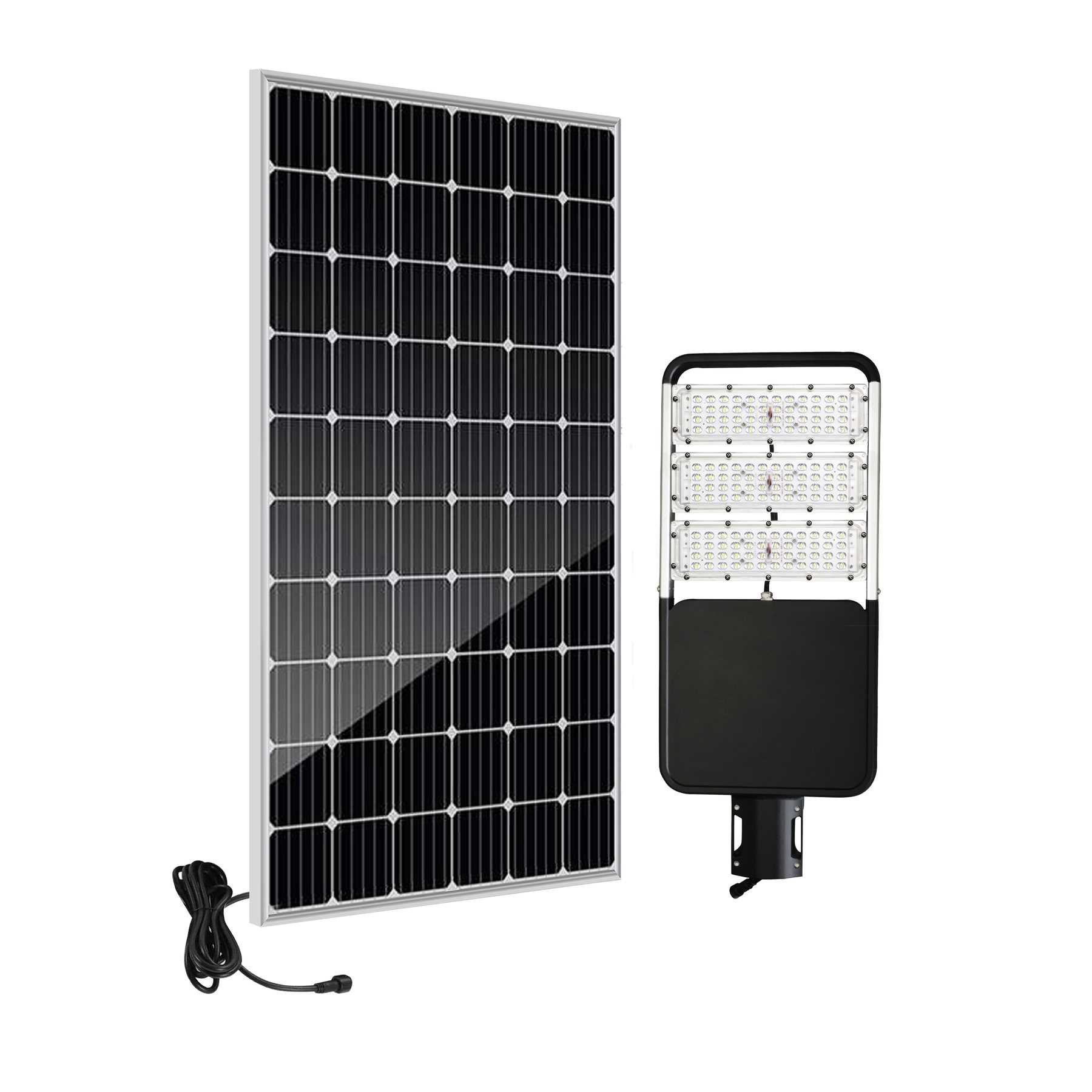

The ZC Series uses a high-class aluminum alloy body, a brand-new A-grade LiFePO4 battery and a high-efficiency monocrystalline silicon solar panel. Bright-sun charging time is approximately 6–10 hours. The separate solar-panel and lamp-head layout should be planned together with the selected 55–60mm pole interface and the local solar conditions.

Install the solar panel in an unobstructed position and keep it away from shade. The final orientation should be planned according to the site latitude and local solar conditions. Keep the panel and lamp assembly clean and check the mounting connection during routine maintenance.

LED Module Detail and Applications

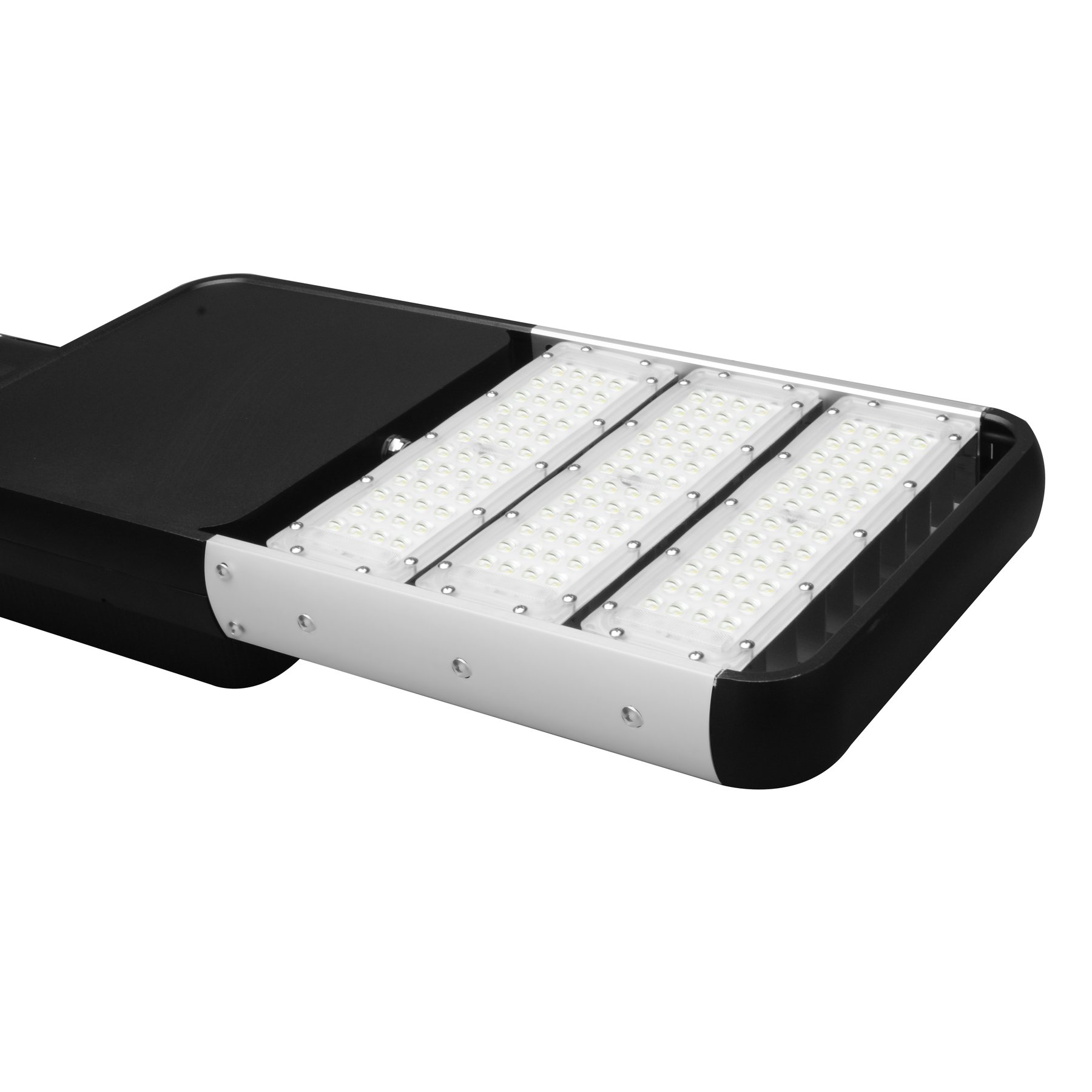

The supplied detail image presents the LED module and optical face of the ZC lamp head. The series can be considered for residential streets, paths, parking areas, campuses and other outdoor projects that prefer a split solar-panel and lamp-head arrangement. The catalogue also shows single- and double-lamp applications at different pole heights.

For project support, model matching and installation planning, please contact TOPENERGYS.
