Products Description
The best present for the concept of invisible source.
Comfortable lighting without glare.
Elegent body coating and antiglare cover.
External dimming interface with Triac,0/1-10V,Dali , Tuya, CASAMBI Smart Control.
DC24V /48V safety voltage working condition.

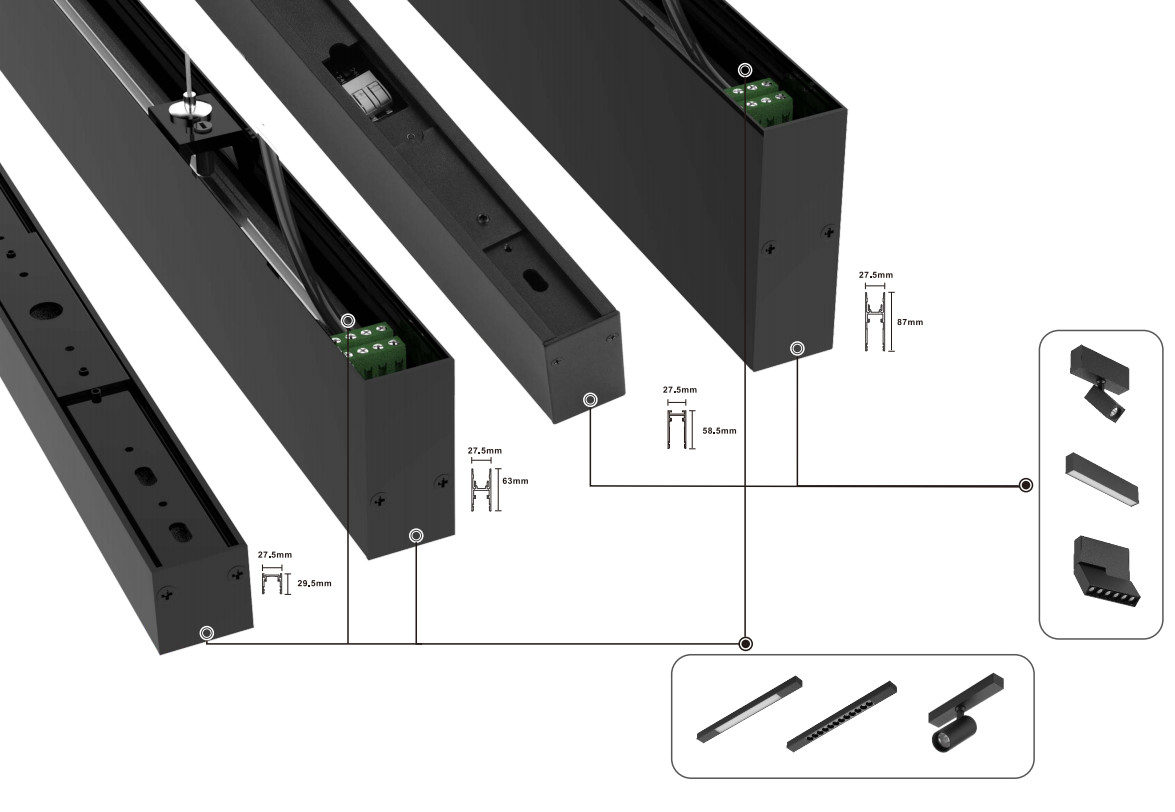

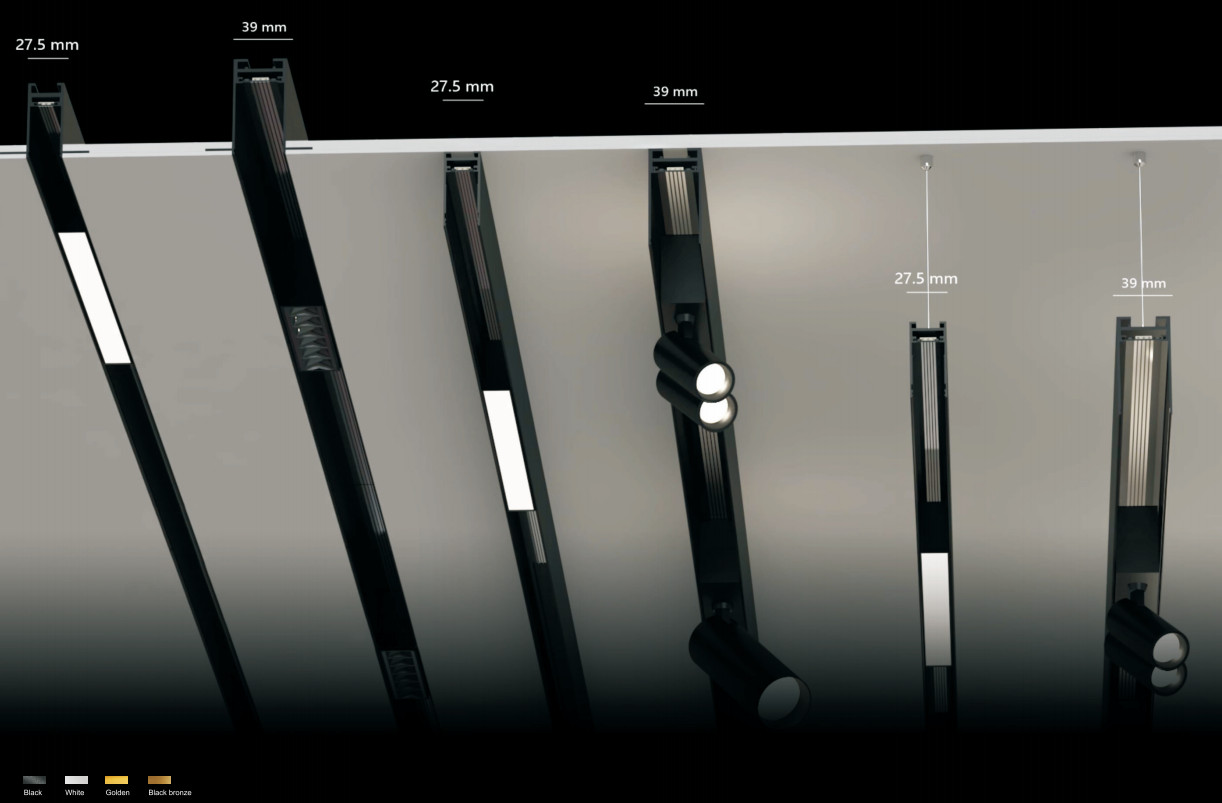

Pendant/ Recessed/ Surface mounted track rail installation.
Tags:
Technical parameter

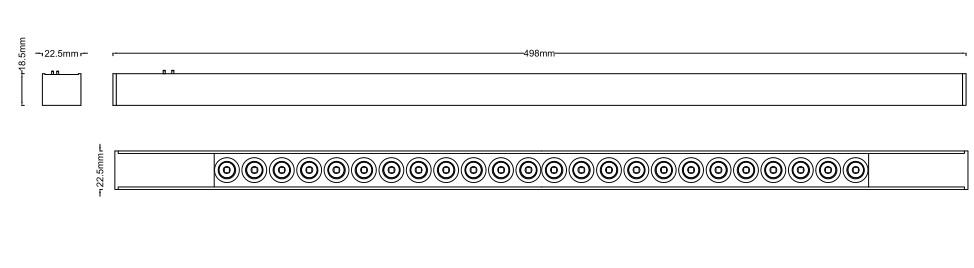

Schematic drawing
Light distribution
Main Specifications

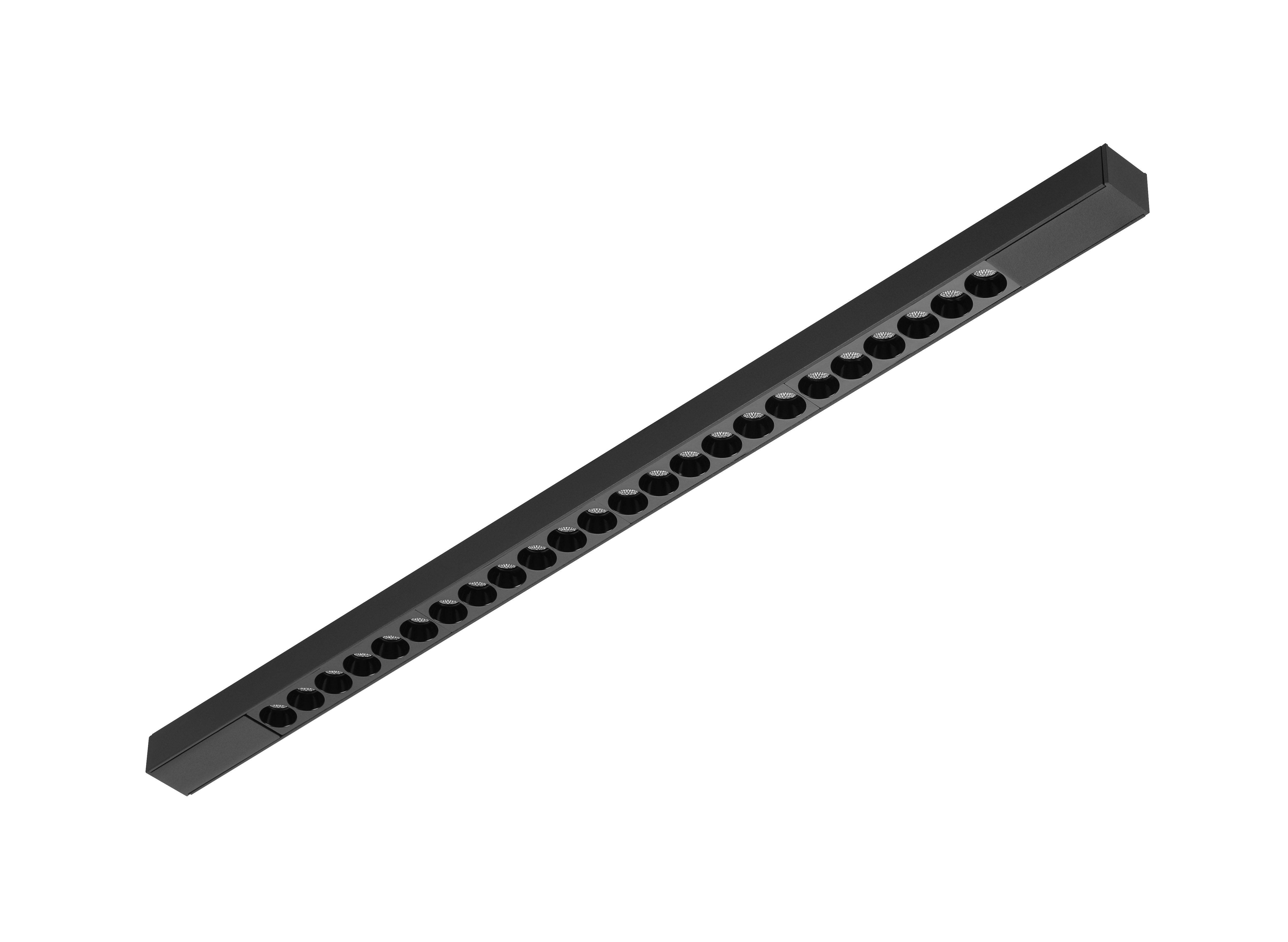

Model number: DOT24-ULS
Power: 24W
CCT: 2700K /3000K /4000K/5000K
CRI: Ra90 /95
SDCM<3
Lumen : 1880lm
Mountings: Magnetic track rail
Enviroment: Indoor Lighting
Optic lens /reflector : 20/34/48D beam angle for option
Lighting Type: Direct
LED chip : OSRAM COB LED
Lighting distribution : Symmetric
Voltage: DC24V
Material: Aluminium, Polycarbonate
Average Life Expectancy: 40,000 hours.
Guarantee: 3 ~5years guarantee.
IP Rating: IP20, Class I
Finishing : White RAL9003, Black RAL9005. Other finishing can be customized
