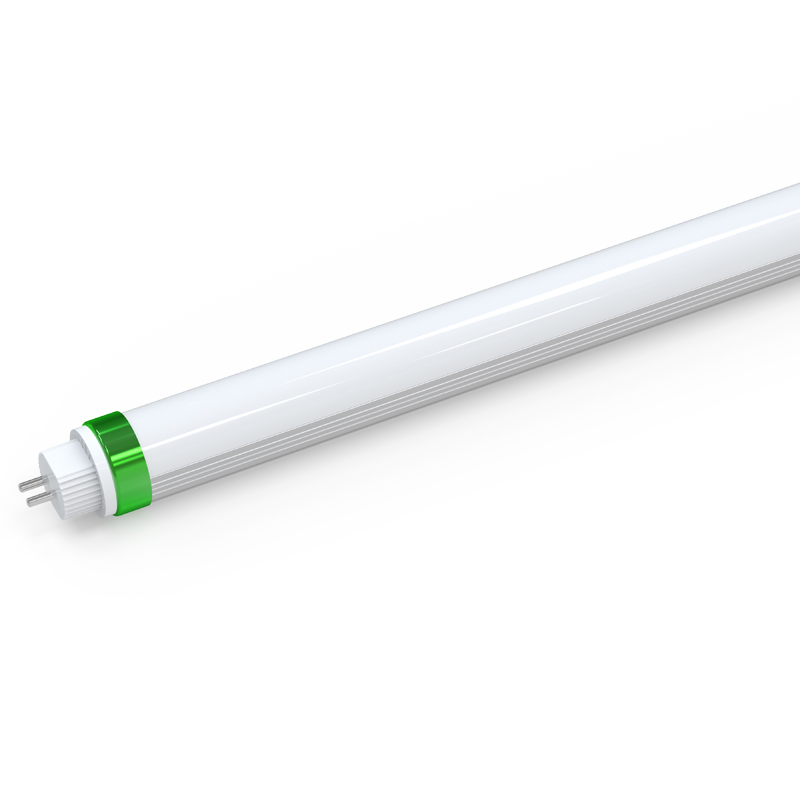

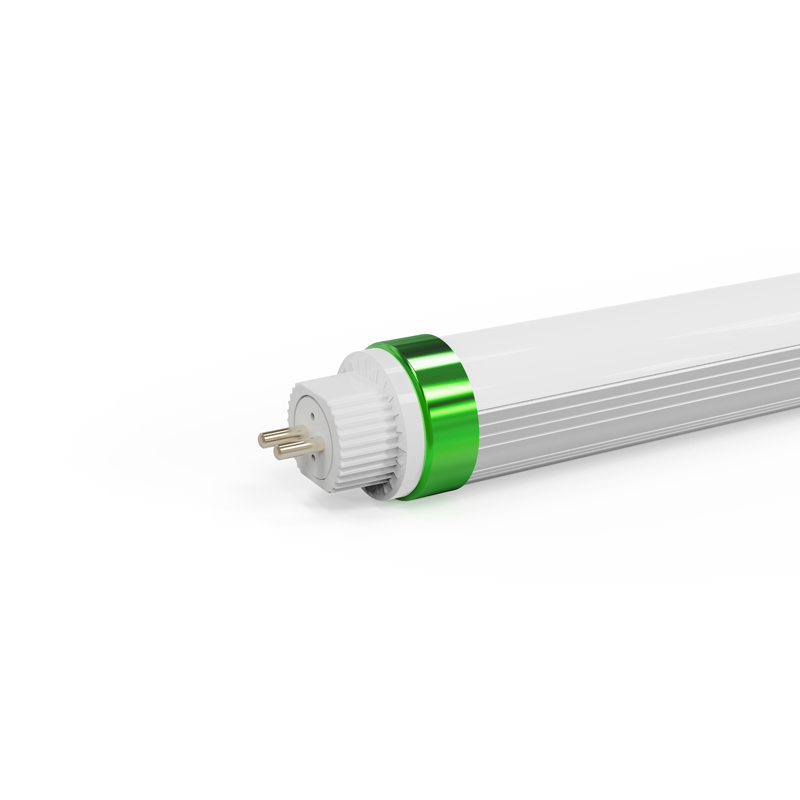

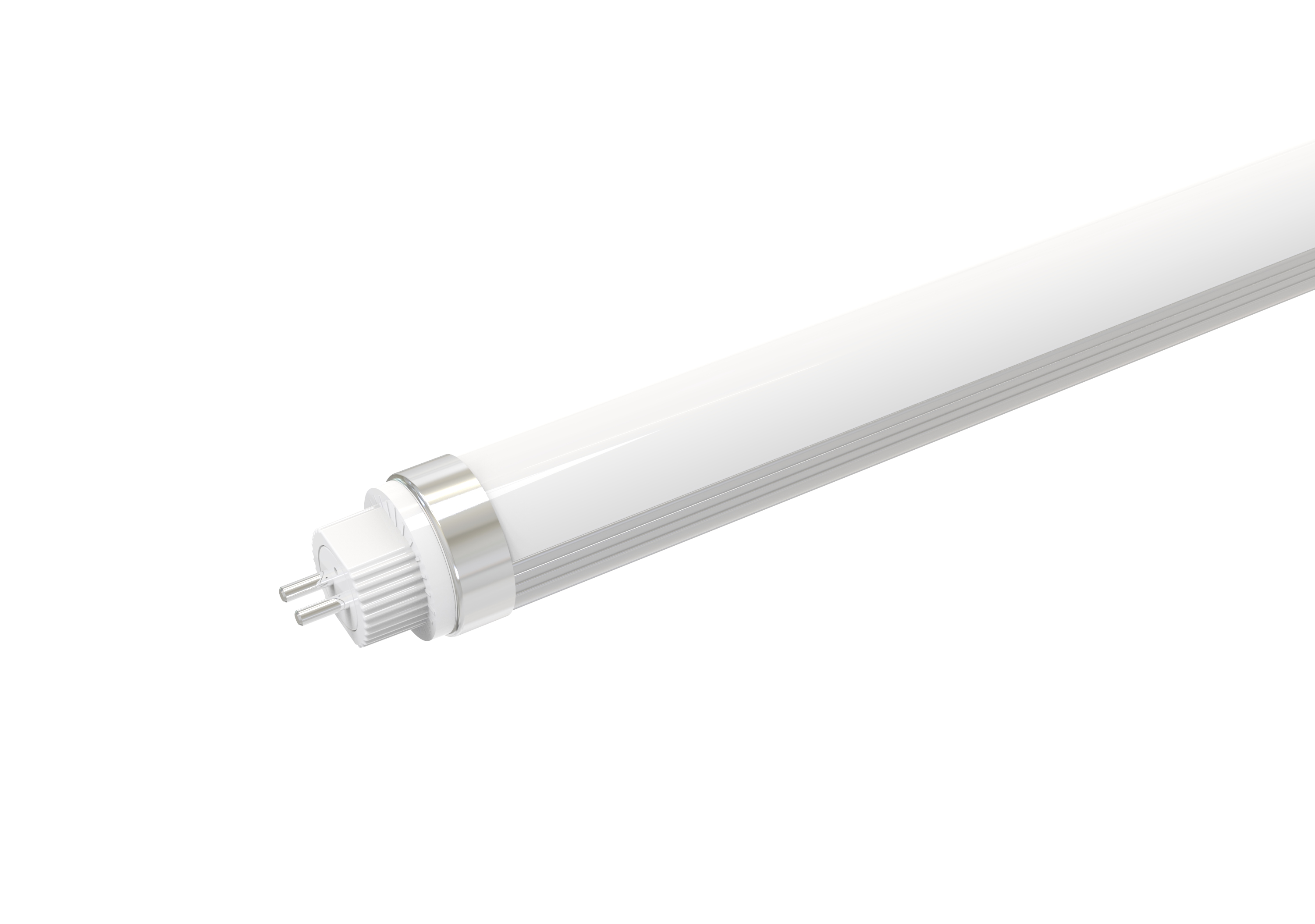

CHINA FACTORY -TUV /CE/ ROHS/ TUBE/ EVG/Universal T5 Tube LIGHT

AL6063 aluminum & PC Cover

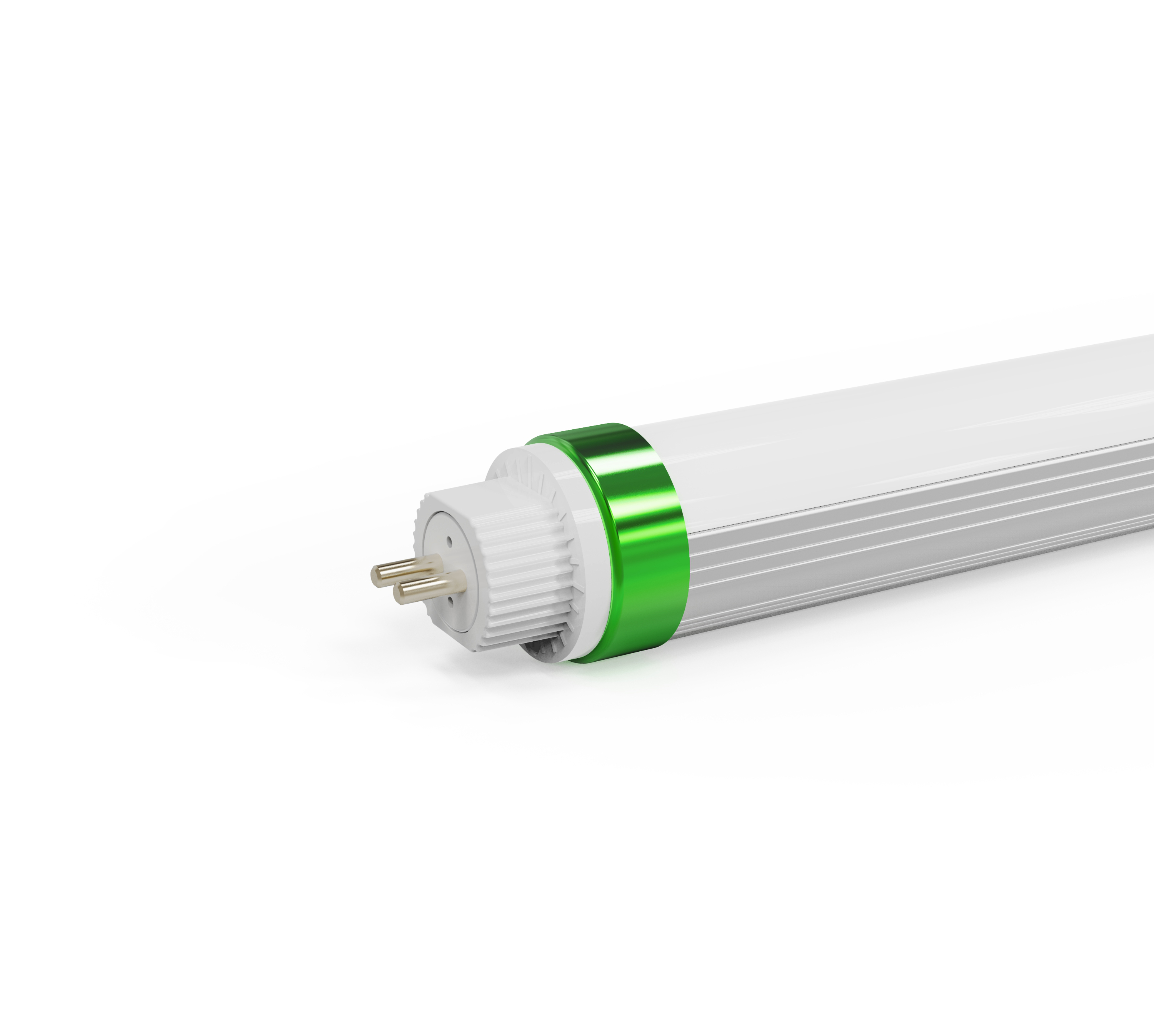

Pretty and elegant appearance, patented product.

Directly install on the existing T5 fixture. Plug and play led tube directly, replace trational fluorescent tube light, no need to cut wiring.

Colorful metal rings available,Blue,Green,Silver,Red and Gold.

G5 fixed or ratating end cap is available.

6063 Aluminum shell,Japan PC cover,long lifespan.

OEM service available, Laser print customer LOGO and customer exclusive lable.

Mainly used in factory,supermarket,carpark,hospital and school.

Product Specification

Power : 9W /12W /18W /25W

Length: 60CM, 90CM, 120CM, 150CM

LED CHIP: SMD2835

Driver: Internal isolated LED driver
Light Efficacy : 150LM/W

Power factor :  PF>0.9

CRI > 80

CCT :2700-6500K

Working condition : -20~48 Celsuis degree

Input voltage : AC100-347V

Material : AL6063 +PC cover

End cap : rotatable cap

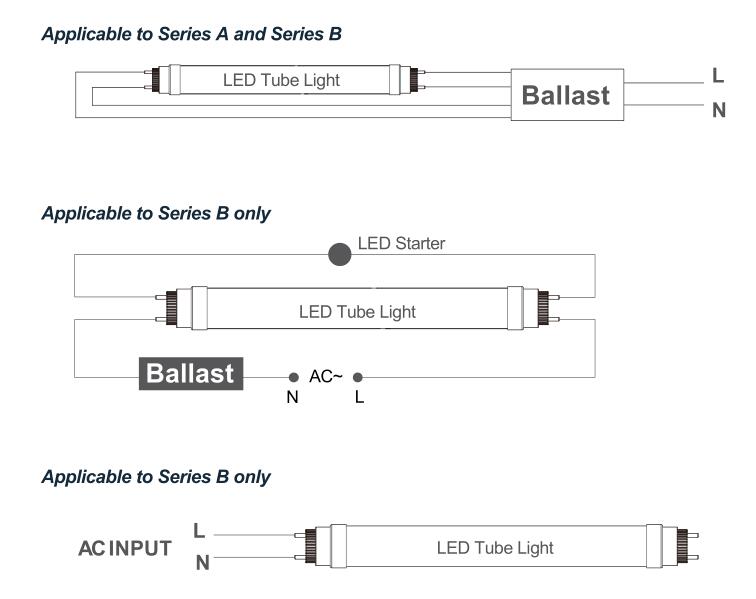

Wiring : single , double end input optional

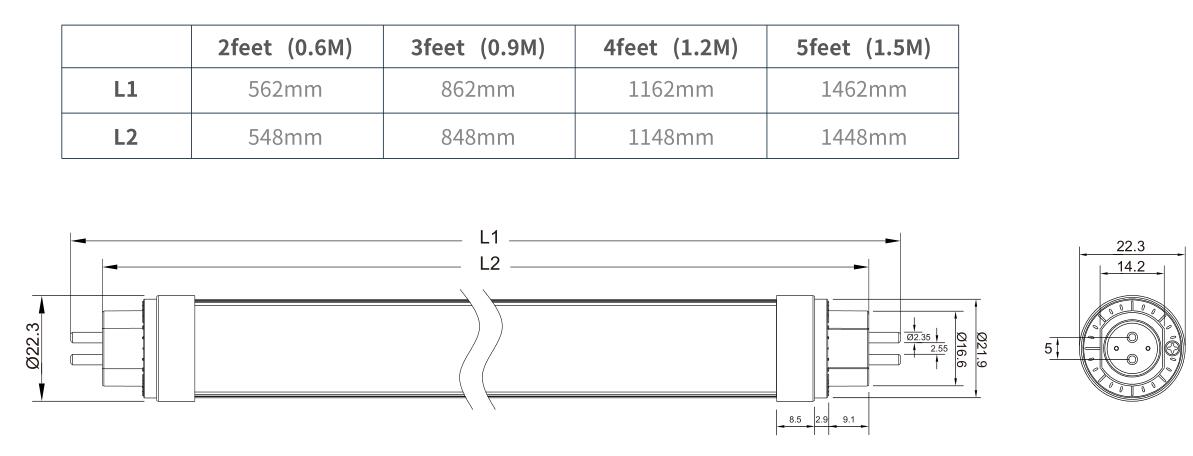

Drawing and dimension:
