Products Description
10W .20W,30W SHAPEABLE ZOOMABLE LED TRACK LIGHT
Product number: TL-35W-F1Z
Beam angle: 15-55degree adjustable
CRI>97, 90, 80 available for 2700K, 3000K, 4000K
Luminaire 70-100 lm/Watt @ CRI80
3/1 phase track adapter,
Built in driver, AC200-240/100-130V
Description:
The directional integrated track lights allow your lights allow you to focus illumination in those places
where it is needed. By making use of universal 1/3-phase track rails, one can obtain functional
and adaptive lighting that is ideal as accent lighting. The spots can be easily mounted and tilted.
With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in
shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial
or private applications. Integrated track lights offer with the Citizen led chip
with a very high color rendering (CRI 97) and a flicker-free driver.
Parameters:
Lumen Data:
Shapeable LED track light is updated from our zoomable track light, with modular design,
the track light body can be used as zoomable track light and shapeable LED track light,

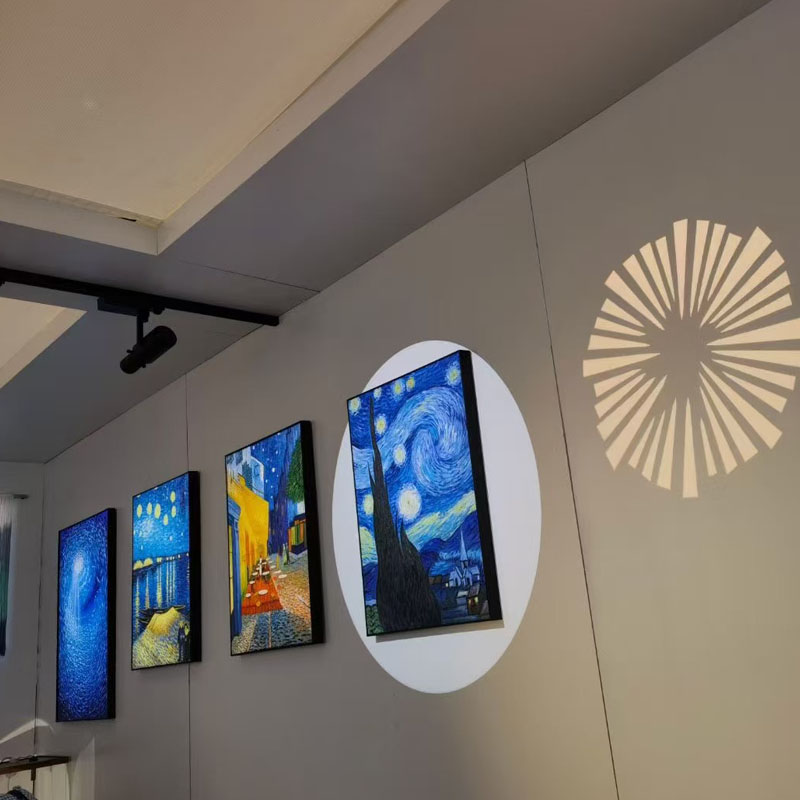

spotlight and wall wash track light, and Logo projection function .
With special optics, one track light can get different shape as you one,
you can dim and change the CCT by DIP switch or App,
it is ideal for museum, art gallery, high end shop etc.
Product number: TL-35W-F1Z
Beam angle: 15-55degree adjustable
CRI>97, 90, 80 available for 2700K, 3000K, 4000K
Luminaire 70-100 lm/Watt @ CRI80
3/1 phase track adapter,
Built in driver, AC200-240/100-130V
Description:
The directional integrated track lights allow your lights allow you to focus illumination in those places
where it is needed. By making use of universal 1/3-phase track rails, one can obtain functional
and adaptive lighting that is ideal as accent lighting. The spots can be easily mounted and tilted.
With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in
shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial
or private applications. Integrated track lights offer with the Citizen led chip
with a very high color rendering (CRI 97) and a flicker-free driver.
Parameters:
| Housing materials | 6063 brushed aluminum alloy |
| Size | Φ37xL153mm |
| Housing color | Black, White, Silver |
| Light source | Citizen COB LED |
| Color | Warm white, neutral white, cool white |
| Kelvin | 2700K/3000K/4000K/5000K |
| CRI | 80+,90+,97+ |
| Luminous efficiency | >100lm/W @CRI80 (whole lamp) |
| Beam angle | zoomable 20 degree to 60 degree |
| Adjustable | Continuous 350° rotation and 90° pivot |
| Wattage | 10W |
| Voltage | AC200-240V/ AC90-130V |
| Dimming | DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee |
| Driver | PF>0.95 flicker-free |
| Track adapter | 1/2/3 phase universal adapter |
| Warranty | 3-5 years |
| Model No. | CCT | CRI | LED Power | SystemPower | LED Output |
| TL-10W-ZS | 2700K | CRI97 | 10W | 10W | 1200LM |
| TL-20W-ZS | 3000K | CRI97 | 20W | 20W | 1850LM |
| TL-30W-ZS | 4000K | CRI97 | 30W | 30W | 2250LM |
| TL-30W-ZSA | 3000K | CRI97 | 35W | 35W | 2700LM |
Tags: zoomable spotlight framing spot light museam lighting shop light
