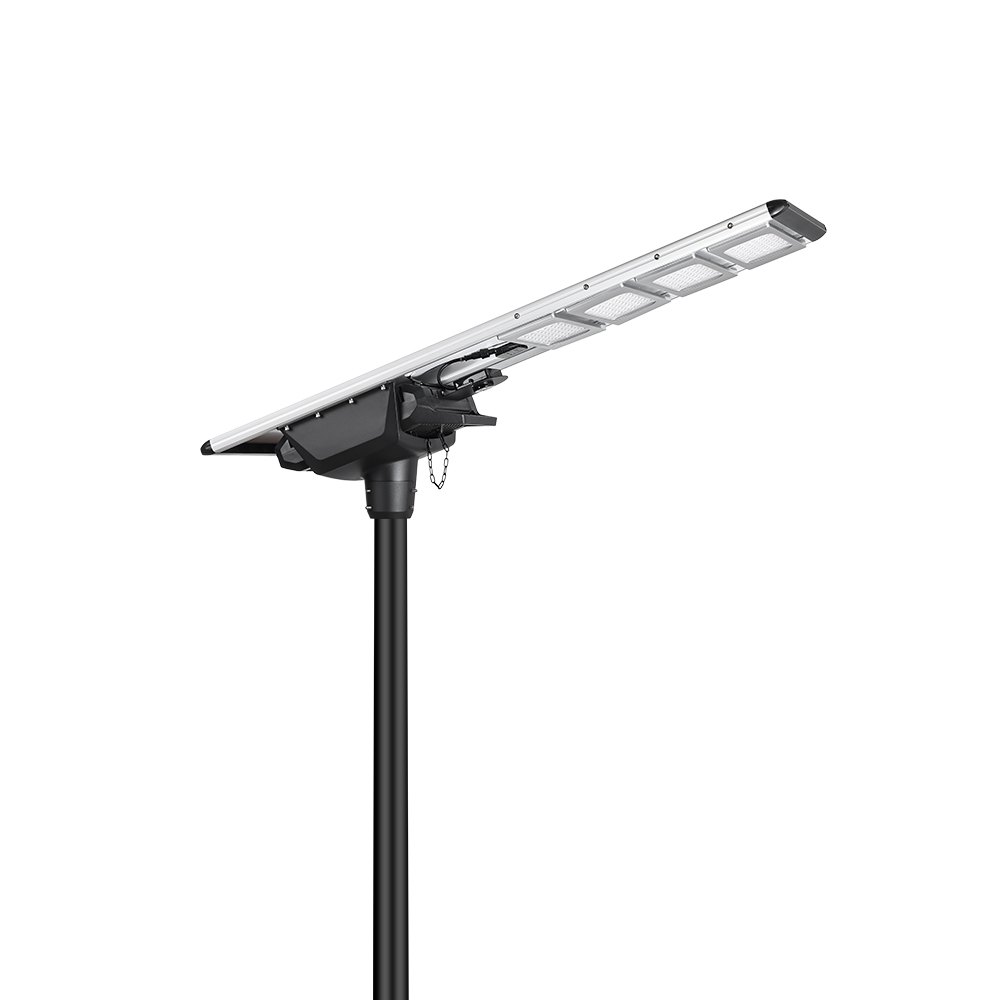

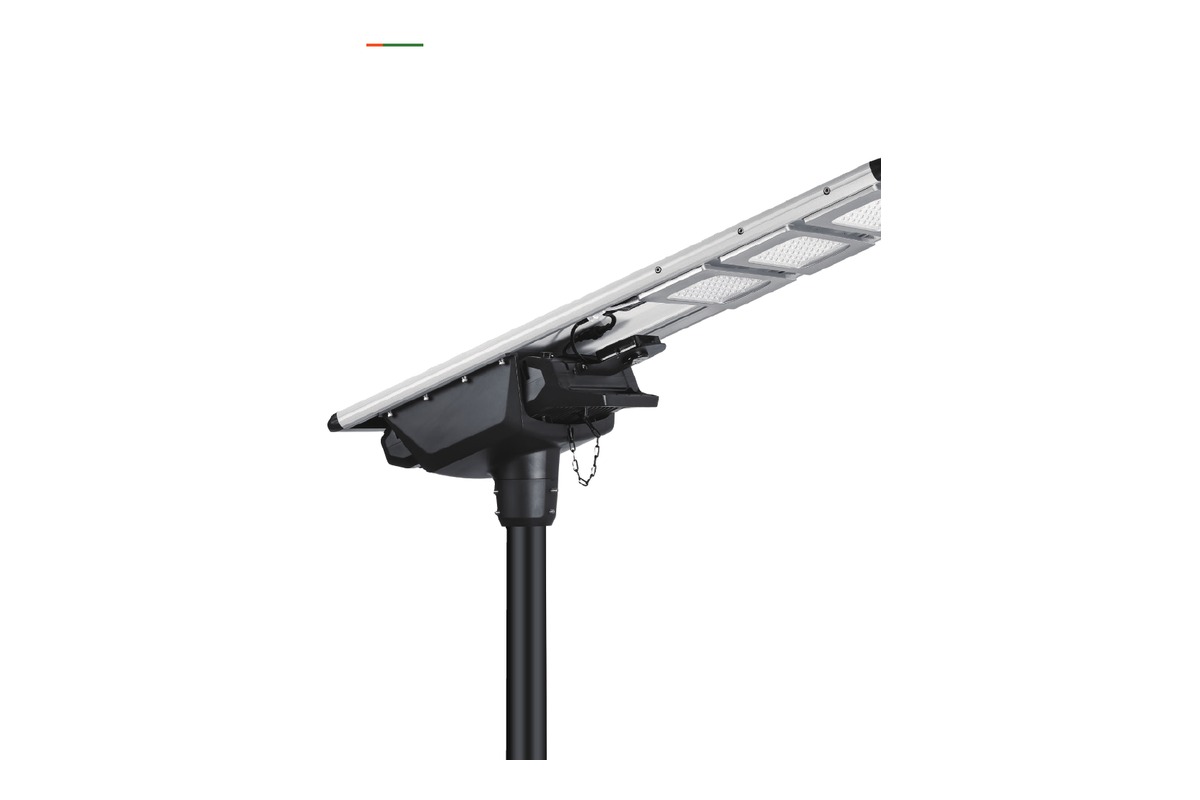

QH Series Integrated Solar Street Light with Adjustable LED Module
The QH Series is an all-in-one solar street light platform for roads, streets, factory roads, parks, villages, parking areas and other outdoor lighting projects. The solar panel, Bridgelux LED light source, controller, LiFePO4 battery, human body sensor and luminaire housing are integrated into a streamlined high-strength aluminum alloy frame, helping simplify installation, operation and maintenance.
Seven output options from 60W to 250W provide flexible project matching for different mounting heights, road widths and spacing requirements. The adjustable LED module supports practical light-direction configuration, while the integrated controller and pull-out battery box improve service access in off-grid lighting applications.
QH Series Product Video
Watch the QH Series integrated solar street light design, modular construction and service-oriented battery-box configuration.
Key Product Advantages
- All-in-one solar architecture: the solar panel, LED source, controller, battery, sensor and housing are integrated into one complete street-lighting unit.
- Adjustable LED module: the LED module can be configured for road lighting on different terrains and pole layouts.
- Intelligent energy management: intelligent power adjustment, automatic weather judgment and planned discharge rules help adapt operation to changing solar conditions.
- Protected LiFePO4 power system: intelligent charging and discharging management, dual software and hardware protection, and intelligent balancing technology support more than 2,500 battery cycles.
- Efficient outdoor illumination: Bridgelux LED chips deliver up to 190 lm/W with a 140° luminous angle for broad coverage.
- Human body sensing: the 160° sensor has a detection distance greater than 9 m and can be activated according to customer requirements.
- Remote operation: the 433 MHz remote control supports up to 30 m range, can pass through obstacles, controls multiple lamps and provides four lighting modes.
- Service-friendly modular design: the pull-out battery box can be installed by pushing it into the card slot, simplifying battery replacement and controller maintenance.
Technical Specifications by Model
| Model | LED Power | Monocrystalline Solar Panel | LiFePO4 Battery | Bridgelux LED Chips | Recommended Mounting Height | Recommended Spacing Between Lamps |
|---|---|---|---|---|---|---|
| QH-60W | 60W | 18V 80W | 12.8V 30Ah | 5050 / 96 pcs | 6–8 m | 20–25 m |
| QH-80W | 80W | 18V 100W | 12.8V 45Ah | 5050 / 144 pcs | 8–9 m | 25–30 m |
| QH-100W | 100W | 18V 130W | 12.8V 45Ah | 5050 / 192 pcs | 9–10 m | 30–35 m |
| QH-120W | 120W | 18V 140W | 12.8V 60Ah | 5050 / 192 pcs | 10–11 m | 35–40 m |
| QH-150W | 150W | 18V 150W | 12.8V 75Ah | 5050 / 240 pcs | 10–12 m | 35–40 m |
| QH-200W | 200W | 36V 200W | 25.6V 45Ah | 5050 / 288 pcs | 10–12 m | 35–40 m |
| QH-250W | 250W | 36V 250W | 25.6V 60Ah | 5050 / 336 pcs | 10–12 m | 35–40 m |
Common Technical Data
| LED source | Bridgelux |
|---|---|
| Color temperature | 2700K–6500K; Ra >70 |
| Luminous efficacy | 190 lm/W |
| Solar cell efficiency | >21% high-efficiency monocrystalline solar cells |
| Working time | 12–15 hours |
| Cloudy/rainy-day capability | 5–7 cloudy or rainy days |
| Charging time | 6–8 hours |
| Recommended mounting caliber | 70–76 mm |
| Working temperature | −25°C to +65°C |
| Human body sensor | 160° detection angle; detection distance >9 m; activation according to customer requirements |
| Battery power indicators | 100% / 75% / 50% / 25% |
| Fault indicator | Red / blue / green |
| Ingress and impact protection | IP66 / IK10 |
| Warranty | 3-year / 5-year options as specified for the project |
Controller and Status Indicators
The QH controller integrates a magnetic power switch, human body induction and status indicators in a simplified service-oriented design. Four blue LEDs in the upper row indicate battery level: one indicator represents approximately 25% power, two indicate 25%–50%, three indicate 50%–75%, and four indicate 75%–100%. The controller also provides red, blue and green fault-status indication. Before the luminaire is mounted on the pole, remove the magnetic iron sheet according to the installation procedure.
433 MHz Remote Control
The QH Series includes a 433 MHz remote-control solution with a control distance of up to 30 m. The signal can pass through obstacles, control multiple lamps and select one of four lighting modes. The mode can be selected according to seasonal sunshine conditions and project operating preferences.
Pull-out Battery Box

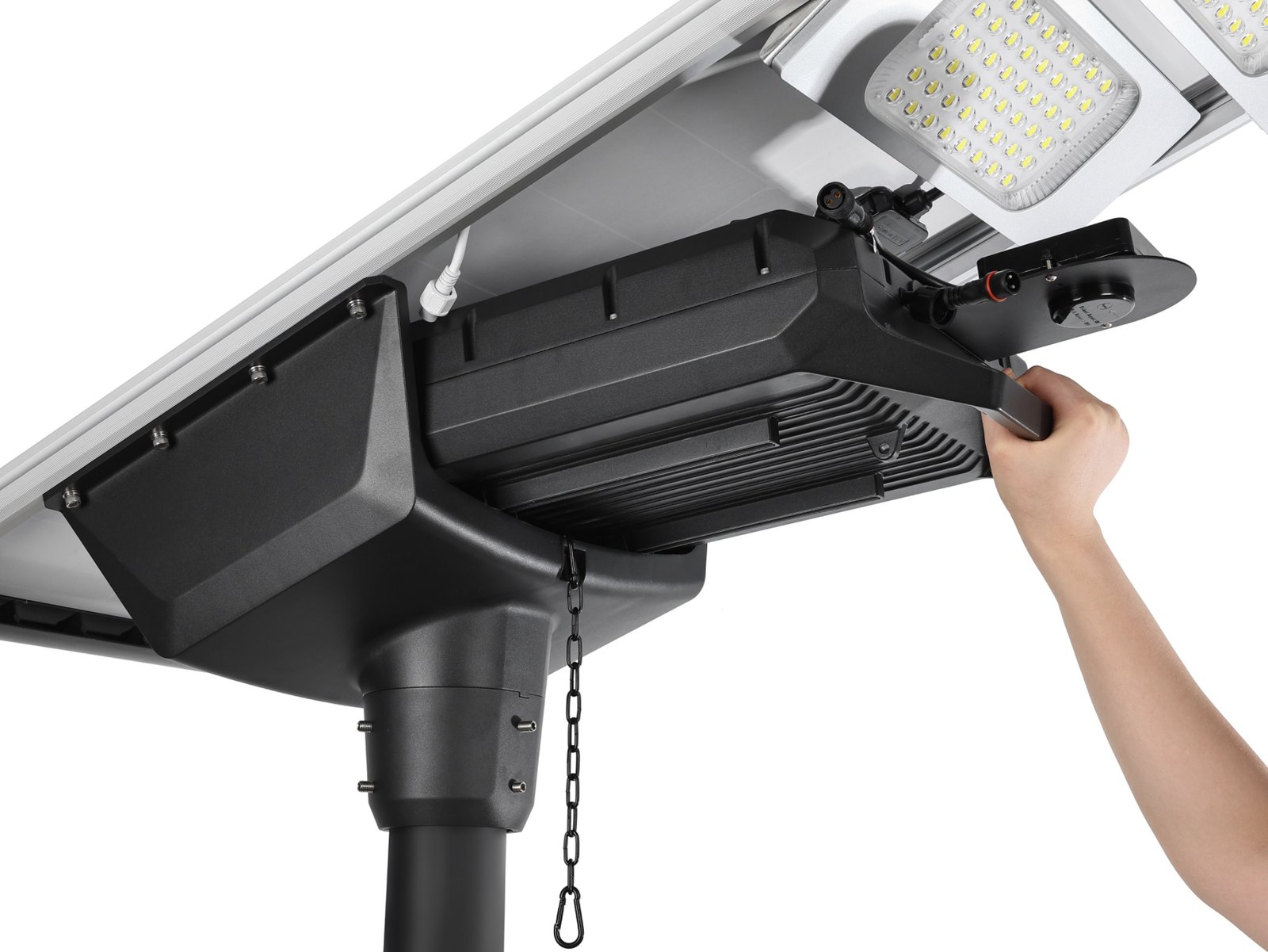

The pull-out battery box is designed for efficient installation and maintenance. Align the battery box with the card slot, push it into position, connect the cable and secure the anti-theft chain. The screw-free pull-out structure helps reduce service time when the battery pack or controller needs to be inspected or replaced.
Construction and Installation

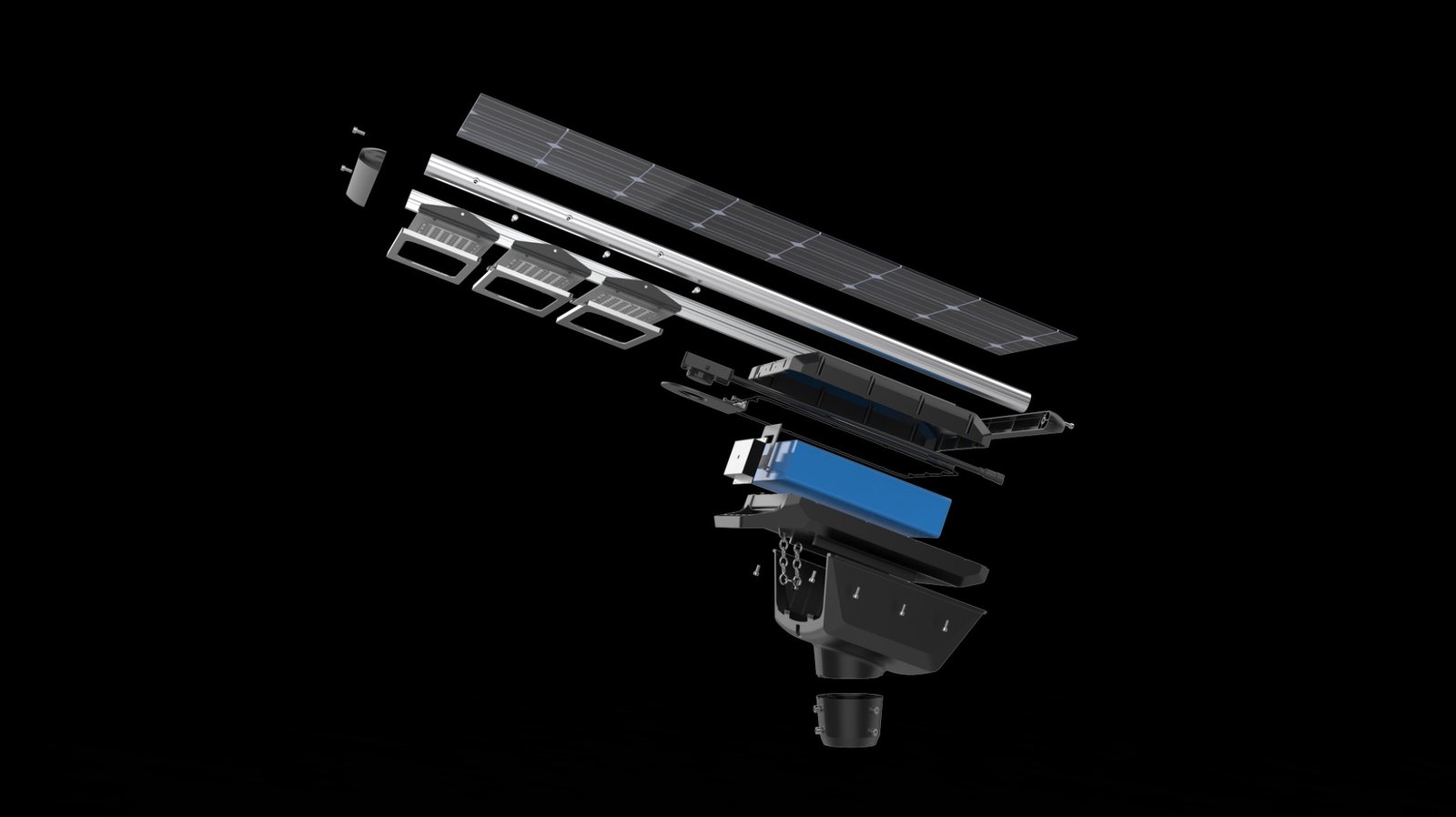

The main assembly consists of a solar panel, lamp shell, LED light board with optical lens, controller, battery pack with battery box and fixed bracket. The LED module is adjustable for project-specific road-lighting alignment. Installation should be performed by qualified personnel using the approved project drawing and local safety procedures.
The PPT installation sequence is: secure the aluminum plate to the battery-box top with two M6×10 screws; secure the controller with two M3×16 screws; attach the bracket to the small sleeve with six M8×20 screws; secure the bracket to the lamp body with eight M6×16 screws; fix the lamp body to the pole with six M8×25 screws; install the pole in a properly prepared concrete foundation; push the battery box into the bracket and secure its anti-theft chain; then connect the controller to the LED, battery and solar-panel wires.
Packaging
QH-60W, QH-80W, QH-100W, QH-120W, QH-150W, QH-200W and QH-250W are packed in two cartons: one carton for the lamp and one carton for the battery pack.
Applications
QH Series integrated solar street lights are suitable for city roads, streets, branch roads, factory roads, parks, villages, rural roads, parking lots, schools, gardens, squares, mountainous and remote areas, courtyards and other outdoor lighting projects where grid-independent LED illumination is required.
Product Images
Project support: Contact TOPENERGYS for QH Series model selection, pole compatibility, lighting layout and application-specific configuration support.
