Products Description

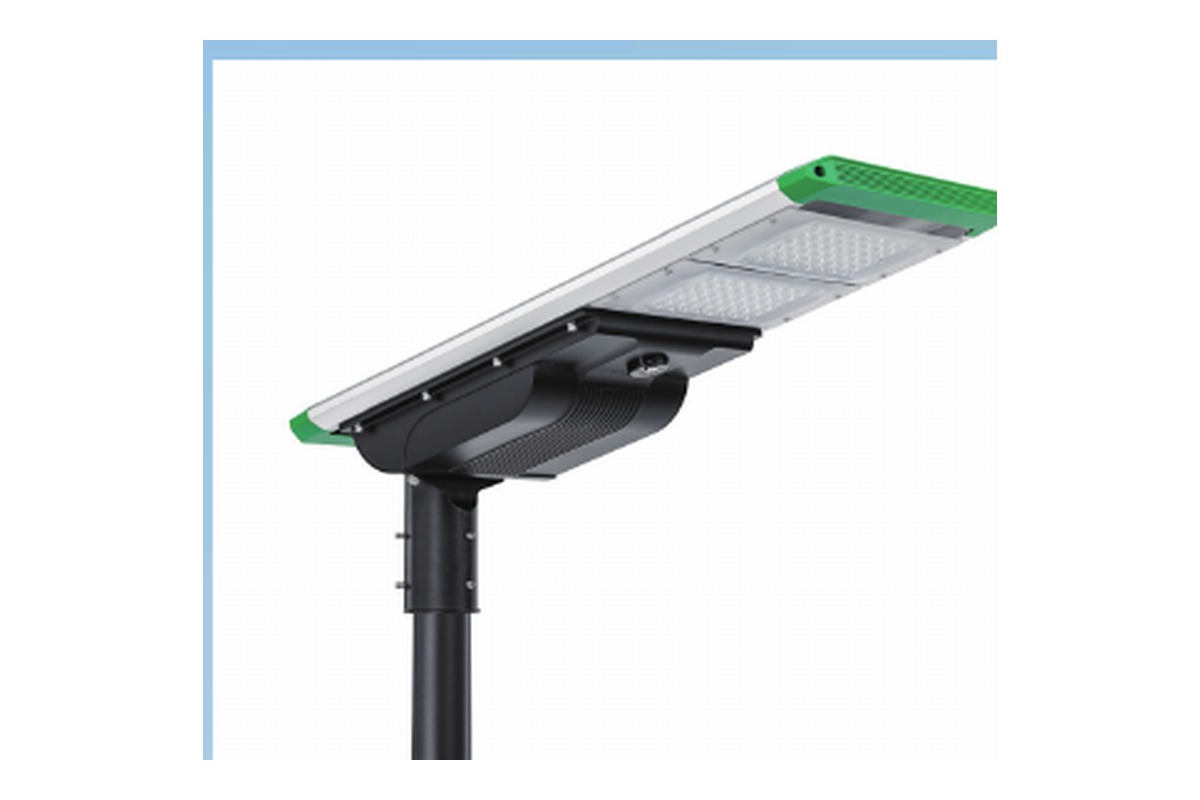

FX Series Integrated Solar Street Light

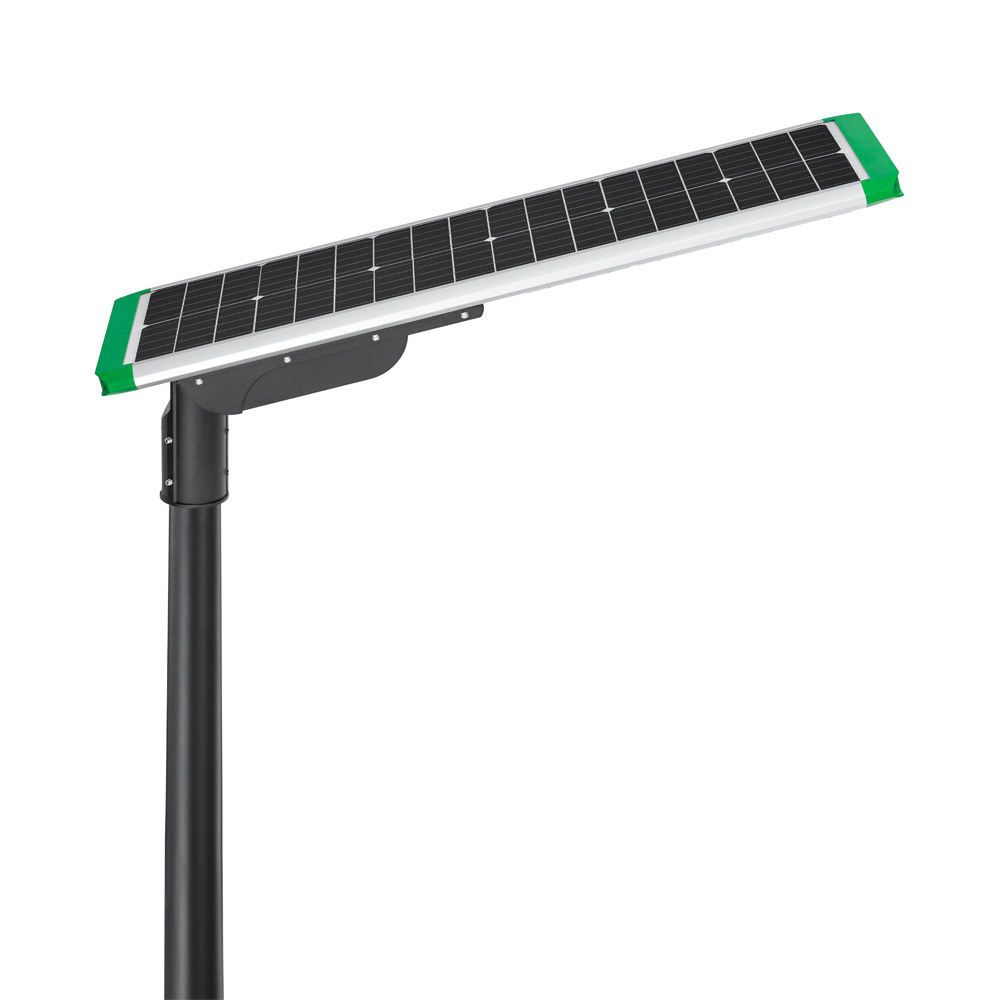

The FX Series is an integrated all-in-one solar street light designed for reliable off-grid road, pathway and area lighting. Solar panels, Bridgelux LED modules, LiFePO4 battery, controller, microwave sensing and the luminaire housing are integrated into one streamlined system, reducing installation complexity and simplifying transportation and maintenance.
With six selectable power levels from 40W to 120W, a 0°–90° adjustable mounting bracket and vertical or horizontal installation options, the FX Series can be configured for different pole layouts, road widths and project requirements.
Product Video
Watch the FX Series solar street light design, modular construction and adjustable-bracket installation overview.
Key Product Advantages
- Integrated solar architecture: solar panel, LED light source, controller, battery, sensor and housing are combined in one compact luminaire.
- Adjustable installation: the 0°–90° bracket supports flexible pole alignment and both vertical and horizontal mounting selections.
- Intelligent energy management: automatic weather judgment, intelligent power adjustment and planned discharge rules help adapt operation to available solar energy.
- Protected LiFePO4 battery system: intelligent charging and discharging management, dual software and hardware protection, and balancing technology support more than 2,000 battery cycles.
- High-efficiency optical performance: Bridgelux LED modules deliver up to 220 lm/W with a 140° luminous angle for broad outdoor coverage.
- Remote and sensor control: a 433 MHz remote control can reach up to 30 m, control multiple lamps and select four lighting modes; microwave sensing is configurable for the project.
- Modular maintenance: the minimalist modular construction supports easier installation, disassembly, transportation and battery-pack maintenance.
Technical Specifications
| Model | LED Power | Monocrystalline Solar Panel | LiFePO4 Battery | Bridgelux LED | Recommended Mounting Height | Recommended Lamp Spacing |
|---|---|---|---|---|---|---|
| FX-40W | 40W | 18V 60W | 12.8V 15Ah | 3030 / 96 pcs | 6–7 m | 20–25 m |
| FX-50W | 50W | 18V 70W | 12.8V 30Ah | 3030 / 144 pcs | 6–8 m | 20–25 m |
| FX-60W | 60W | 18V 80W | 12.8V 30Ah | 3030 / 144 pcs | 6–8 m | 20–25 m |
| FX-80W | 80W | 18V 100W | 12.8V 45Ah | 3030 / 192 pcs | 8–9 m | 25–30 m |
| FX-100W | 100W | 18V 130W | 12.8V 45Ah | 3030 / 288 pcs | 9–11 m | 30–35 m |
| FX-120W | 120W | 18V 140W | 12.8V 60Ah | 3030 / 288 pcs | 10–12 m | 35–40 m |
Common Technical Data
| LED source | Bridgelux |
|---|---|
| Color temperature | 2700K–6500K; Ra >70 |
| System efficacy | Up to 220 lm/W |
| Solar cell efficiency | >21% monocrystalline solar cells |
| Working time | 12–15 hours; 10–12 cloudy/rainy days |
| Charging time | 6–8 hours |
| Recommended pole mounting caliber | 70–76 mm |
| Working temperature | −25°C to +65°C |
| Microwave/body sensor | 160° detection angle; detection distance >9 m; activation configurable to customer requirements |
| Battery indicators | 100% / 75% / 50% / 25% |
| Status indicators | Red / blue / green fault-status indication |
| Ingress and impact protection | IP66 / IK09 |
| Warranty | 3 years |
Controller and Remote Control
The integrated controller combines a magnetic power switch, microwave sensing and status indicators in a simplified service-friendly layout. Four blue battery indicators represent approximately 25%, 25%–50%, 50%–75% and 75%–100% battery power. The 433 MHz remote control supports up to 30 m of control distance, can penetrate obstacles and can control multiple luminaires. Four lighting modes are available for seasonal sunshine conditions and project operating preferences.
Construction and Installation

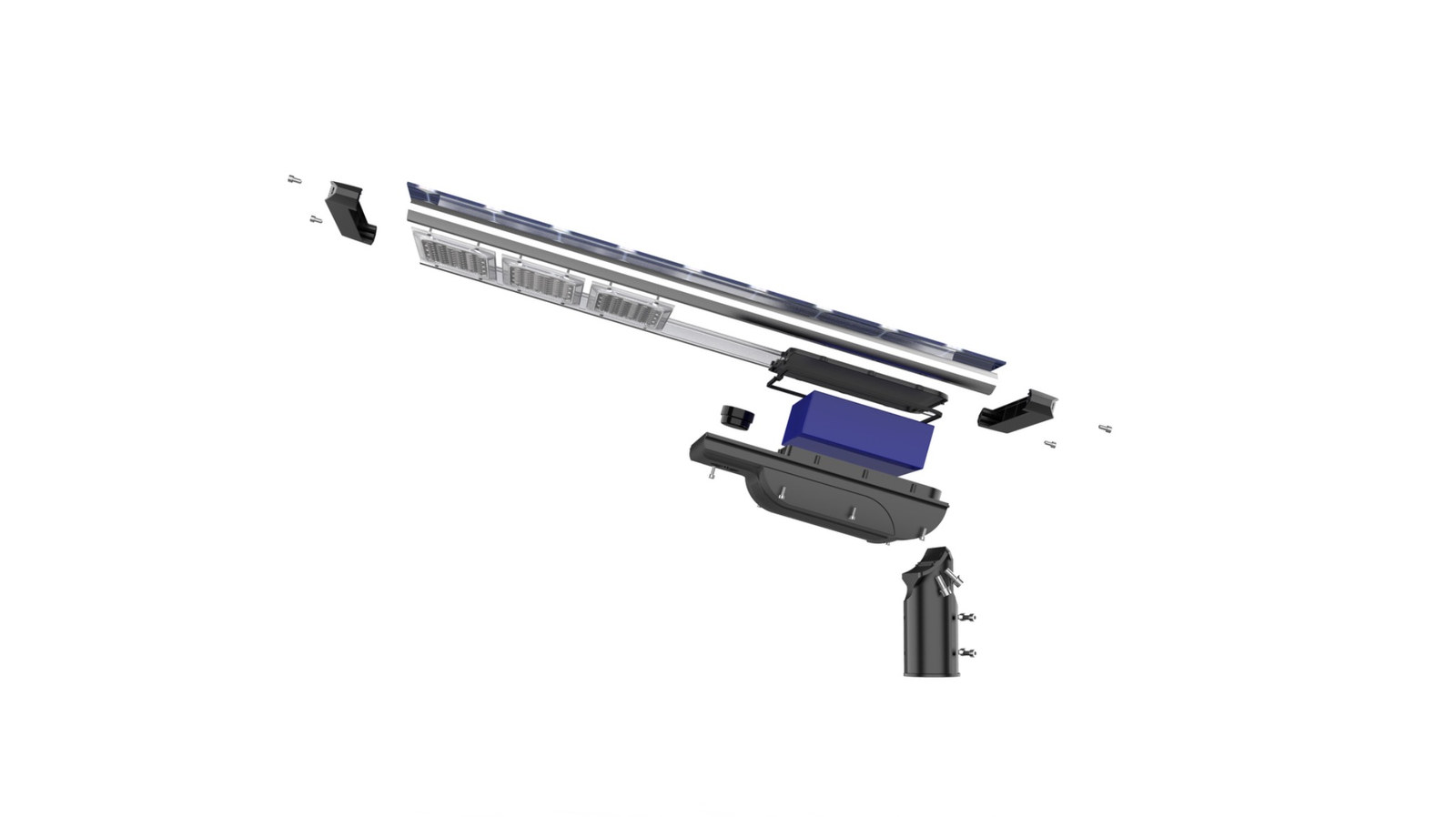

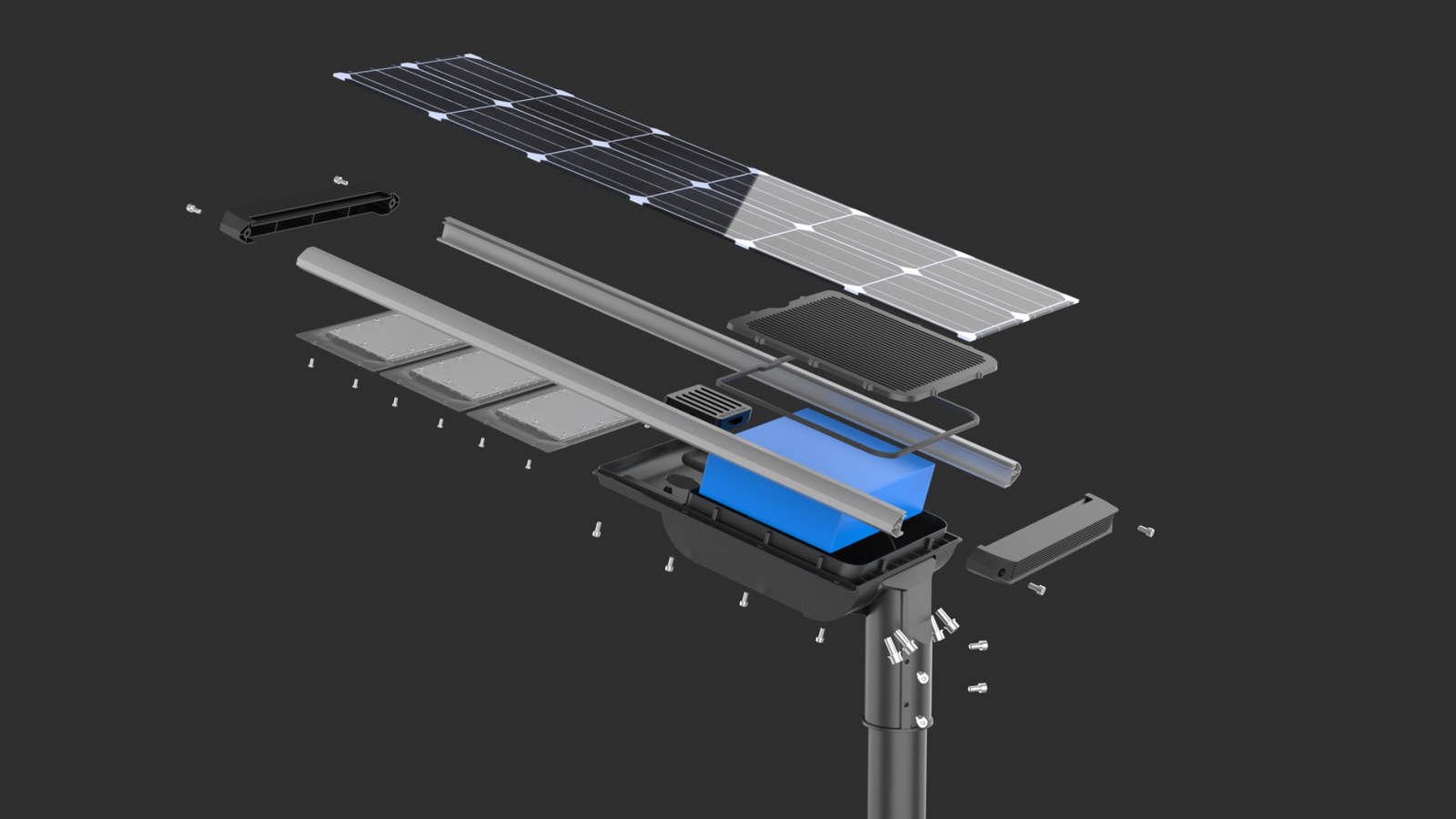

The main assembly consists of the solar panel, lamp shell, LED light board with optical lens, controller, battery pack with battery box and adjustable-angle bracket. The bracket offers a 0°–90° adjustment range and supports vertical or horizontal installation according to the pole configuration.
For installation, prepare the pole foundation and mounting position, secure the bracket with the supplied screws, fix the lamp to the bracket, connect and secure the battery pack, and raise the pole using suitable personnel or equipment. Final installation should follow the project installation drawing and local safety requirements.
Applications
FX Series solar street lights are suitable for branch roads, residential streets, pedestrian paths, factory roads, industrial compounds, parks, villages, mountainous and remote areas, courtyards, schools, squares and other outdoor lighting projects where grid-independent LED illumination is required.
Product Images
Project support: Contact TOPENERGYS for model selection, pole compatibility, lighting layout and application-specific configuration support.
