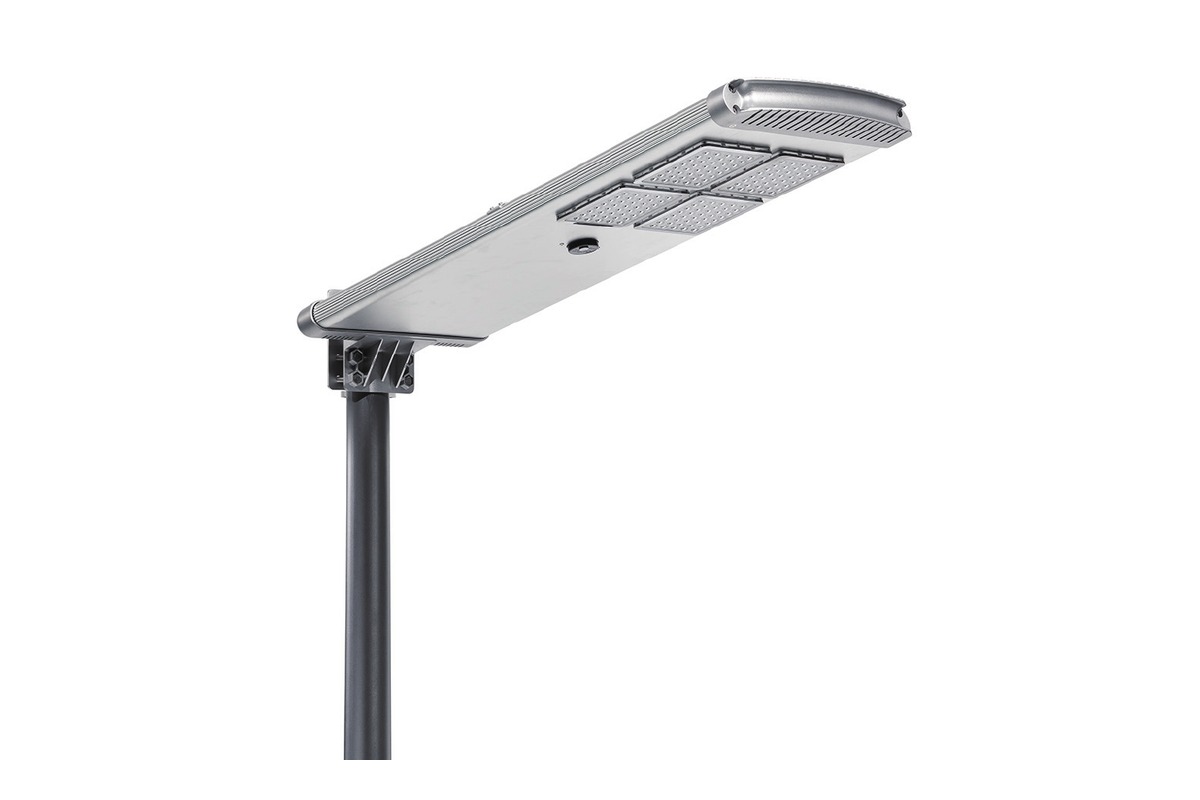

PD Series All-in-One Solar Street Light | 30W–120W
The PD Series is an integrated solar street-lighting platform for roads, streets, factory roads, parks, villages, campuses, parking areas and other off-grid outdoor projects. The solar panel, Bridgelux 3030 LED source, intelligent MPPT charge controller, LiFePO4 battery and sensing system are integrated into a streamlined die-cast aluminum housing, helping simplify transportation, installation and maintenance.
Available in 30W, 40W, 50W/60W, 80W and 100W/120W configurations, the series provides practical project matching for different road widths, pole heights and lighting requirements. The modular, glue-free design allows labeled waterproof connectors and serviceable internal components to be inspected or replaced with less downtime.
PD Series Product Video
Watch the PD Series integrated solar street light in detail, including its all-in-one structure, LED modules, solar panel and installation-oriented design.
Key Product Advantages
- Integrated all-in-one architecture: the solar panel, LED light source, MPPT controller, LiFePO4 battery, sensor and luminaire housing are combined in one compact unit.

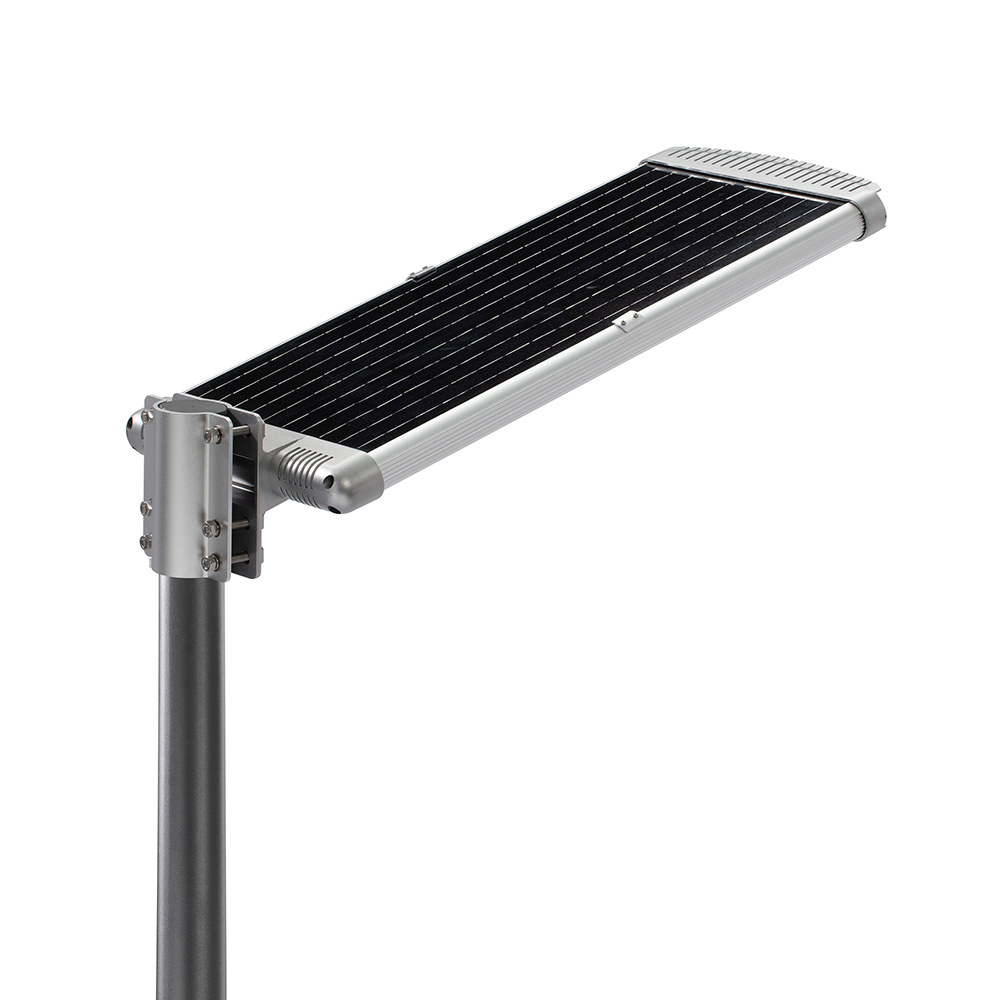

- High-efficiency solar conversion: the monocrystalline solar panel is specified with conversion efficiency up to 21% for practical charging performance in outdoor applications.

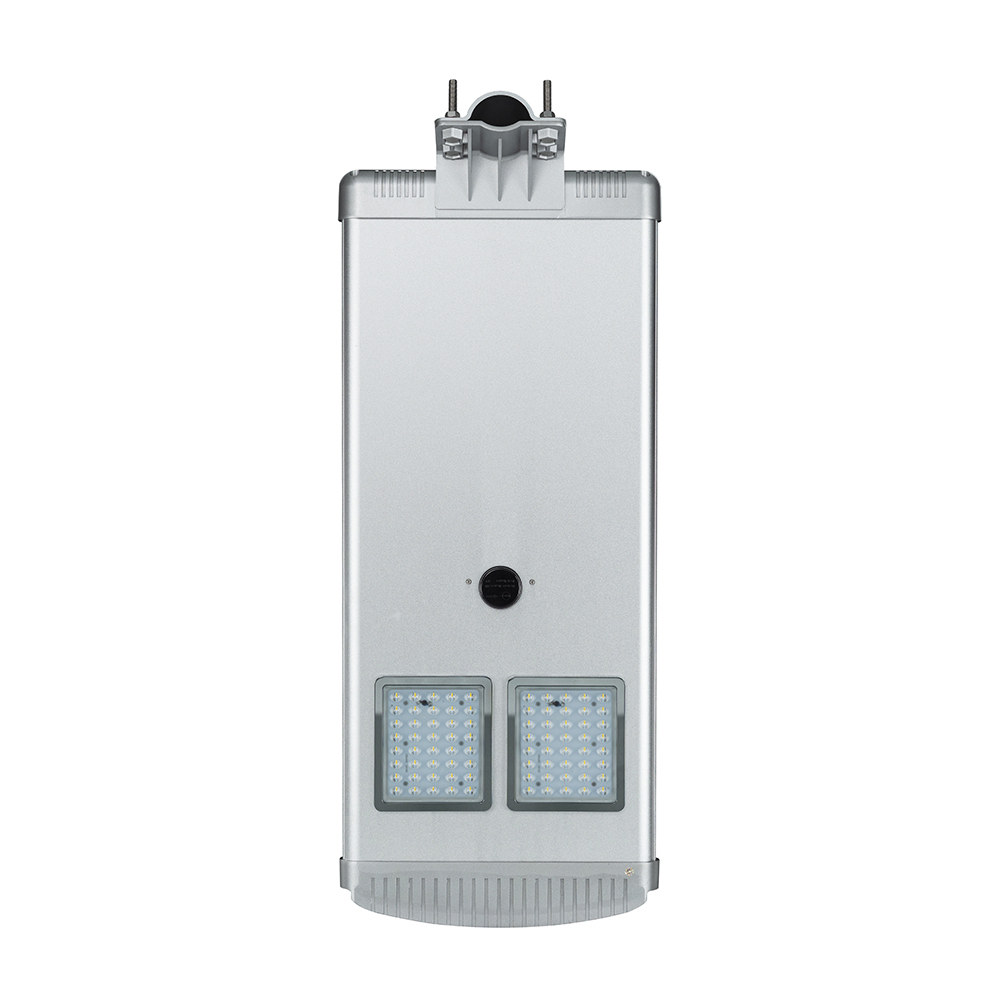

- High-output LED system: Bridgelux 3030 LED chips and a 140° optical angle support broad road coverage, with total-lamp efficacy up to 170 lm/W according to the brochure specification.
- Intelligent energy management: automatic light sensing, intelligent power regulation, weather-condition judgment and planned discharge control help reduce unnecessary energy consumption.
- Microwave motion sensing: the intelligent microwave sensor provides a detection distance greater than 12 m and can be configured for energy-saving operation when full brightness is not required.
- Long-range remote control: UVA remote-control technology supports up to 30 m operation, can work through obstacles and provides four lighting modes with brightness adjustment.
- Protected LiFePO4 battery system: intelligent charge/discharge management, software and hardware dual protection, balancing technology and a deep-cycle design support more than 2,000 cycles.
- Durable die-cast aluminum housing: the anodized finish is designed for impact resistance, high-temperature tolerance and outdoor corrosion protection.
- Service-friendly construction: the glue-free housing, labeled cables and waterproof male/female connectors make assembly, disassembly and maintenance more straightforward.
- Outdoor protection: the brochure specifies IP65 protection for outdoor weather exposure. Avoid prolonged immersion and install the luminaire according to the approved project instructions.
Technical Specifications by Model
| Model | LED Power | LED Chips | Product Size | Recommended Pole Diameter | Cloudy/Rainy Days | Warranty |
|---|---|---|---|---|---|---|
| TP-PD-30W | 30W | 80 pcs | 820 × 385 × 180 mm | 70–76 mm | 7–12 days | 3 / 5 years |
| TP-PD-40W | 40W | 80 pcs | 960 × 385 × 180 mm | 70–76 mm | 7–12 days | 3 / 5 years |
| TP-PD-50W/60W | 50W / 60W | 160 pcs | 1190 × 385 × 180 mm | 70–76 mm | 7–12 days | 3 / 5 years |
| TP-PD-80W | 80W | 160 pcs | 1630 × 385 × 55 mm / 585 × 125 × 320 mm | 70–76 mm | 7–12 days | 3 / 5 years |
| TP-PD-100W/120W | 100W / 120W | 240 pcs | 1950 × 385 × 55 mm / 585 × 125 × 320 mm | 70–76 mm | 7–12 days | 3 / 5 years |
Model dimensions and configuration should be confirmed against the final project drawing and purchase order before production.
Common Technical Data
| LED source | Bridgelux 3030 |
|---|---|
| Total-lamp luminous efficacy | Up to 170 lm/W |
| Solar panel | High-efficiency monocrystalline silicon; conversion efficiency up to 21% |
| Charge controller | Intelligent MPPT controller |
| Battery | A-grade LiFePO4; deep-cycle design over 2,000 cycles |
| Optics | Batwing + polarized lens; 140° viewing angle |
| Microwave sensor | Detection distance greater than 12 m; project-configurable induction operation |
| Remote control | UVA technology; up to 30 m; four lighting modes; brightness adjustment |
| Protection | IP65 outdoor protection |
| Recommended pole diameter | 70–76 mm |
| Warranty options | 3-year / 5-year options according to project agreement |
Battery Safety and Intelligent Protection
The PD design combines intelligent charge/discharge management, software and hardware dual protection and balancing technology. The brochure also describes a dual temperature-control strategy: when the set temperature limit is reached, the controller and LiFePO4 battery can power off together for additional battery safety. An explosion-proof valve is provided between battery cells according to the brochure design.
Optical Design and Lighting Control
The Batwing plus polarized-lens optical design is intended to improve illumination uniformity and distribute light across the target road area. The microwave induction system can reduce operating power when high-brightness lighting is not required. The UVA remote control supports seasonal operating adjustments, four lighting modes, brightness selection and multi-lamp control within the specified range.
Installation and Maintenance Design
The glue-free housing and modular structure make the lamp easier to assemble, disassemble, transport and maintain. Each cable is labeled and waterproof male/female plug connectors help reduce wiring errors. For maintenance, replacement LED modules, batteries and controllers must match the original type and power configuration. All positive and negative connections must follow the approved wiring diagram; reverse connection is prohibited.
Installation Precautions
- Handle the lamp carefully during installation and do not collide with or knock the housing.
- Install the solar panel in an unobstructed location away from tall buildings and trees.
- Tighten all mounting screws securely and check them before commissioning.
- Notify the supplier before ordering if a special lighting mode is required.
- Use the same type and power rating when replacing the LED source, battery or controller.
- Follow the approved wiring diagram and clearly separate positive and negative poles.
Applications
PD Series all-in-one solar street lights are suitable for branch roads, streets, factory roads, parks, villages, mountains, remote areas, courtyards, schools, plazas, parking areas and other outdoor lighting projects requiring grid-independent LED illumination. Single-light and double-light project layouts can be evaluated according to road geometry and lighting requirements.

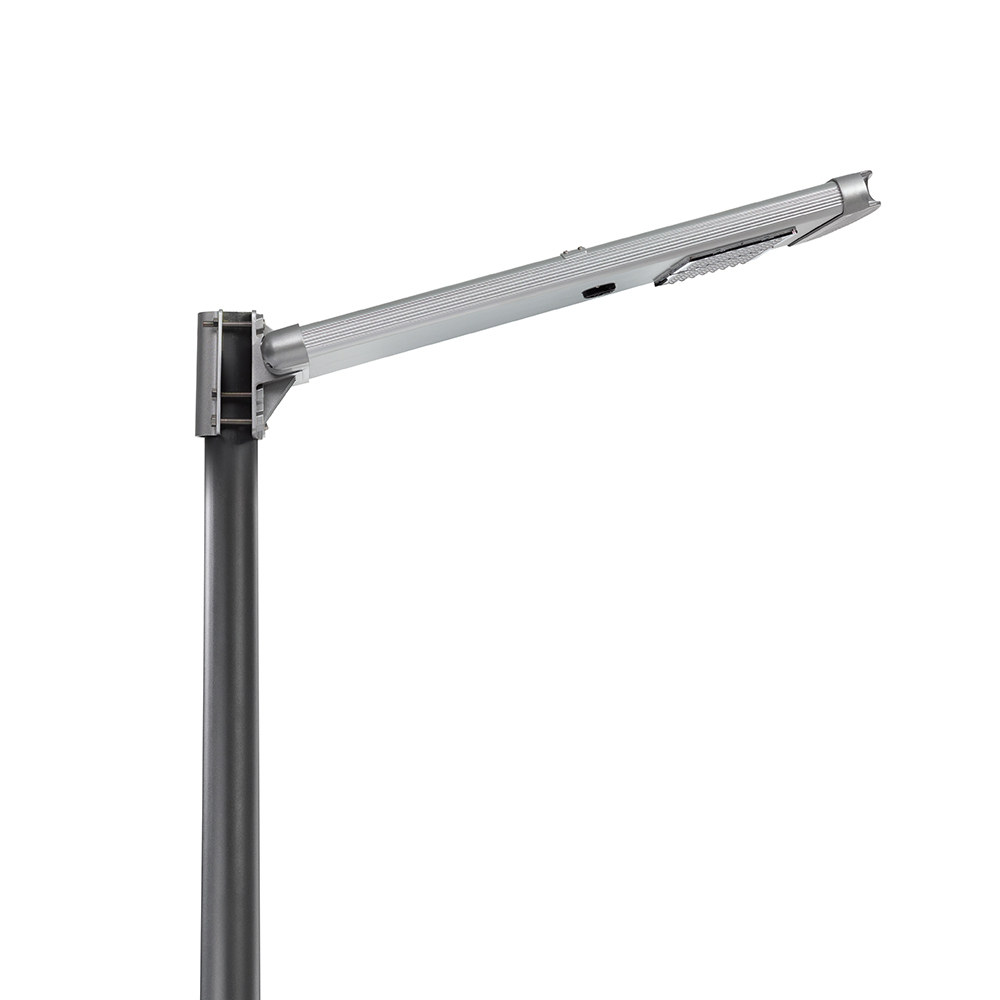

PD Series Product Images
Project support: Contact TOPENERGYS for model selection, solar-resource assessment, lighting layout and OEM/ODM project support.
