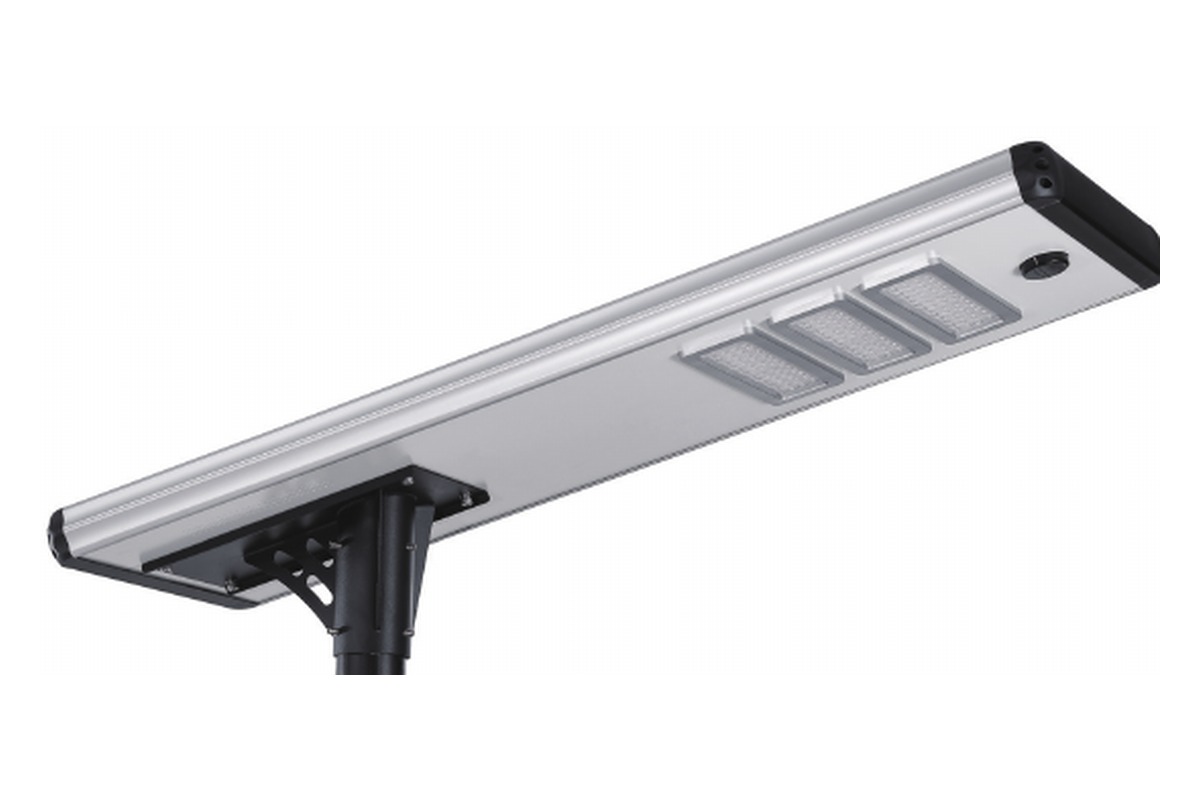

NM Series semi-integrated solar street lights combine a flat linear lamp housing, solar panel, LED light board with optical lens, controller, long-life lithium battery and installation bracket in one practical outdoor lighting solution. With selectable power options from 20W to 400W, the series can be configured for different road-lighting requirements while operating automatically through its light sensor.

NM Series Solar Street Light Overview

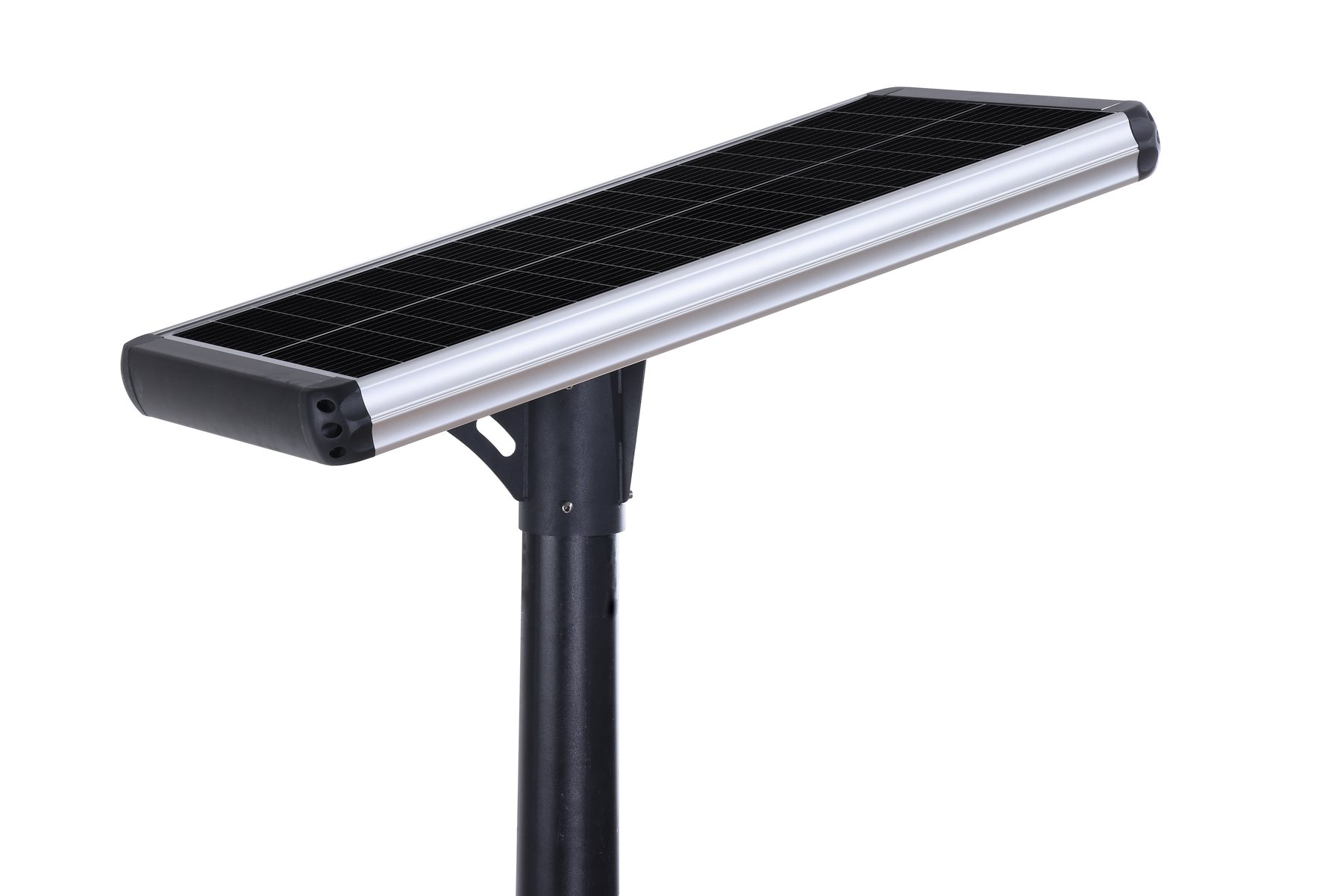

Designed for solar-powered road and outdoor lighting projects, the NM Series uses daylight charging to store energy for automatic night-time operation. The product adopts a flat linear form factor and an integrated lamp system, helping simplify deployment where reliable off-grid lighting is required. Final model selection should be matched to local sunshine radiation and annual total solar radiation.

Product Specifications and Configuration

Integrated Construction

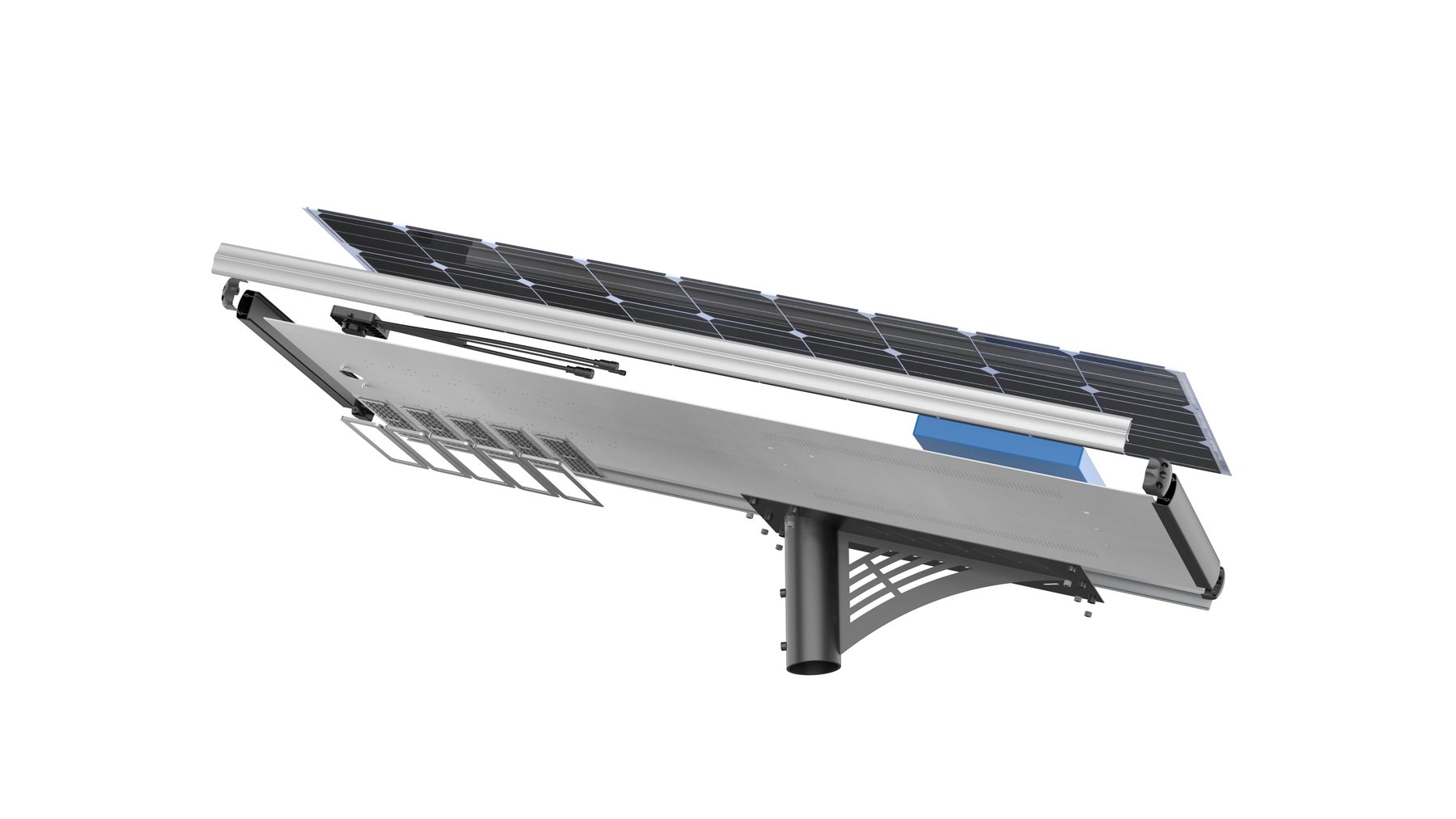

The NM Series is built around six functional assemblies: the solar panel, lamp shell, LED light board with optical lens, controller, battery pack and installation bracket. This layout supports a clean, flat profile while keeping the solar collection and lighting components in a coordinated street-lighting assembly.

LED Module and Control Details

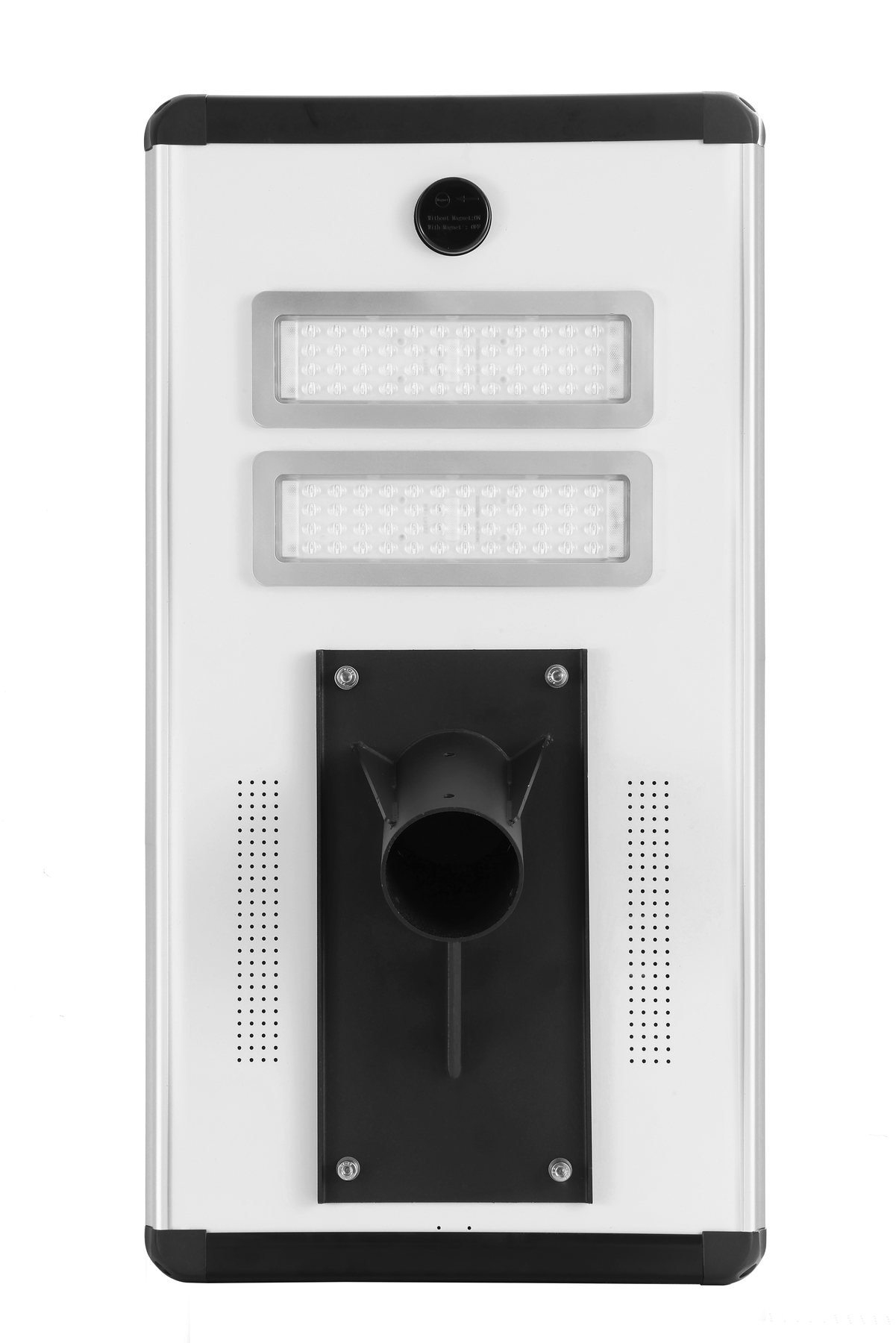

The underside view shows the LED light boards, optical lens area, sensor opening and mounting interface. Before mounting the lamp on the pole, remove the magnetic iron sheet so the light can be commissioned. Once installed, the light turns on and off automatically according to the light sensor.

Product Video

Operation and Installation

Power switch and remote control. The magnetic power switch turns the lamp on when the magnetic sheet is removed and turns it off when the sheet is placed back. Before using the remote control, make sure the lamp is on. The “DEMO” button turns the light on for one minute, whether it is day or night.

Foundation and pole installation. Prepare the foundation cage hole according to the cage dimensions, position and fix the cage with concrete, select the required installation method, then align the bottom pole flange with the foundation cage and fasten it with screws. Installation should be completed by qualified personnel with suitable lifting equipment where required.

Pre-installation charging. Charge every model for three days before installation without night-time discharge. Keep the solar panel free from shade and remove any protective isolation film from the transparent lampshade before use.

Maintenance and Storage Notes

Keep the solar panel clean with normal detergent and remove dust, leaves or grease to support solar power generation. Keep the device away from fire, water and damp locations, avoid severe impact, and do not disassemble it unless you are a professional technician. During long-term storage or transport, fully charge the battery first and charge/discharge the light at least once every two months. After full charge, the battery can be stored for up to six months, subject to periodic inspection and charging.

Please confirm the local temperature range and solar conditions before selecting a model. For project support and model matching, please contact TOPENERGYS.
